Missing water pump blades


Old 06-24-2019, 10:00 PM
  #1
Porschetech3
User
Thread Starter

Porschetech3's Avatar

Join Date: Oct 2010
Location: Alabama USA
Posts: 1,421
Received 6 Likes on 6 Posts
Default Missing water pump blades

My 2002 Boxster 3.2 that I got for my youngest son to drive on the track had a water pump fail. It never ran hot, just started making a rumbling sound after start-up, then after about 10miles near the destination the low coolant light began to flash. Returning home after topping off with coolant, temperature never went above whats is normal. The water pump is a little over 2 years old and less than 20k miles.Has the OEM black plastic impeller that is missing the tips off the blades. I spent a long time back flushing the engine and trying to catch the missing pieces, no pieces were recovered. I can only hope that the pieces made it through the engine and found a non-critical resting place in the heater core or radiators, or even a non-critical place in the coolant passage. The pieces should be relatively small compared to the passages in the cylinder and head. I fabricated some screens to catch any pieces if they return to the engine, or if another water pump happens to fail at some point down the road in the future. I would recomend this mod to anyone rebuilding thier motor or having the pump off for any reason. The metal screen is .250 welded squares with .025 wire diameter, the fiberglass screen is .125 squares with .008 thick strands ( gutter guard screen). Has been on for over a week, temps are as they should be..

Missing blades

metal screen with fine fiberglass top screen

fine mesh "gutter guard"

test fitted on spare short block I've had sitting on a stand in my basement for years, hopefully I never need it..

spare short block showing coolant passages

spare head showing coolant passages
Porschetech3 is offline
Old 06-24-2019, 10:19 PM
  #2
Porschetech3
User
Thread Starter

Porschetech3's Avatar

Join Date: Oct 2010
Location: Alabama USA
Posts: 1,421
Received 6 Likes on 6 Posts
Default

For some reason a couple pictures didn't load, so they are below..

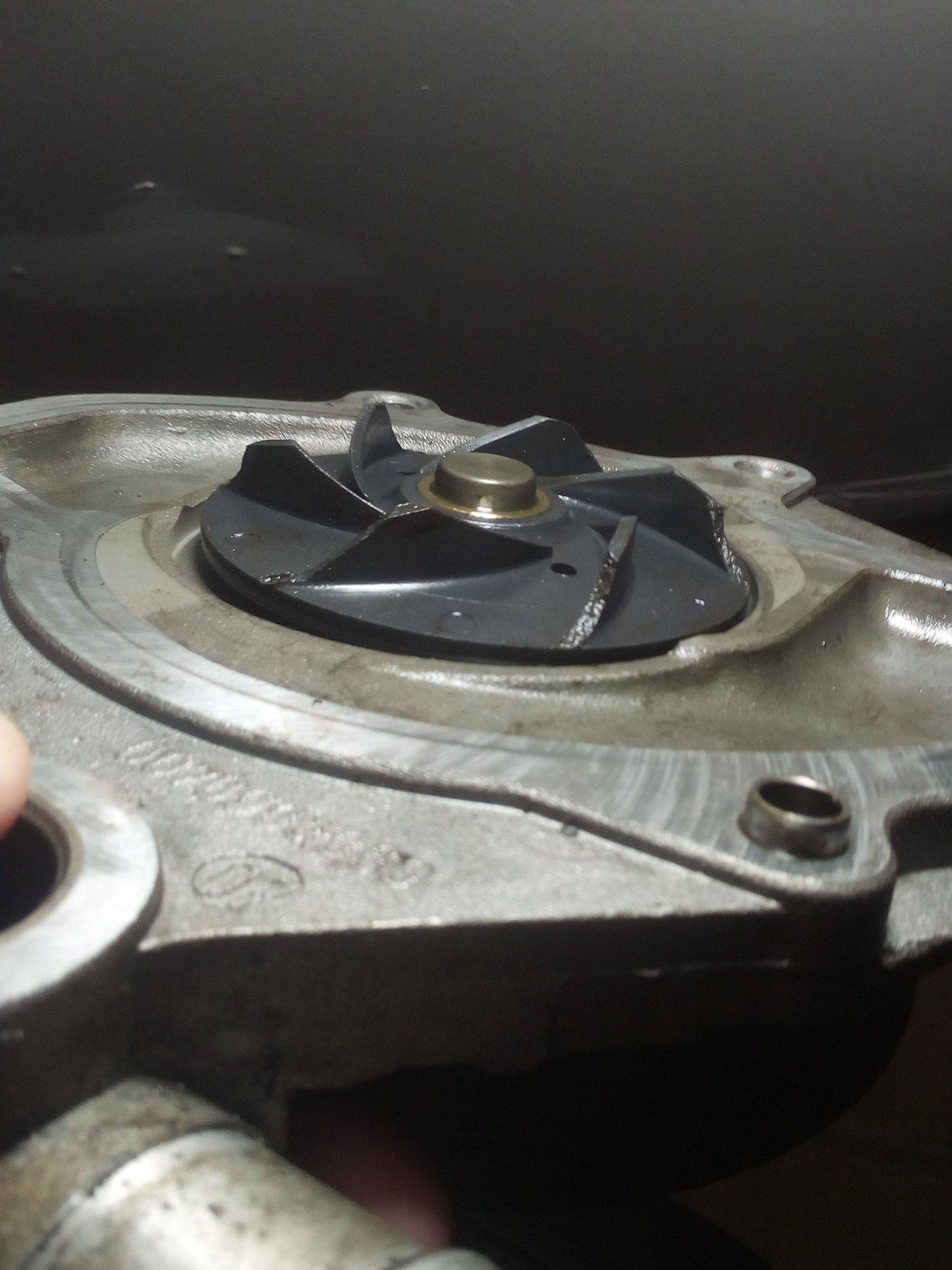

missing blades

welded wire mesh with fine fiberglass mesh," gutter guard mesh"

Boxster on track

My 99 996's going head to head( me and my oldest son)

I let him pass..lol

after a week with new water pump with screens all temps fine
Porschetech3 is offline
Old 06-25-2019, 12:17 AM
  #3
mattie_k
User

Join Date: Jan 2014
Location: Pemberton
Posts: 199
Likes: 0
Received 0 Likes on 0 Posts
Default

Definitely an interesting idea!
That said, is there any data that shows the size of the smallest coolant passages?
mattie_k is offline
Old 06-25-2019, 12:36 AM
  #4
dan_189
Addict
Rennlist Member

Join Date: Nov 2014
Location: Melbourne, Australia
Posts: 2,749
Likes: 0
Received 4 Likes on 4 Posts
Default

Yikes, when my water pump went it just dumped coolant out of the bottom and the tank made a gurgling noise. Was two weeks after I bought it!
dan_189 is online now
Old 06-25-2019, 12:42 AM
  #5
Porschetech3
User
Thread Starter

Porschetech3's Avatar

Join Date: Oct 2010
Location: Alabama USA
Posts: 1,421
Received 6 Likes on 6 Posts
Default

Originally Posted by mattie_k View Post
Definitely an interesting idea!
That said, is there any data that shows the size of the smallest coolant passages?
I don't know of any data anywhere, but from what I can see without slicing a head in sections with a water jet, the smallest passage appears to be the slots in the block deck to the cylinders, you can see them in the pictures. They range from .165 to .225, so anything that can block them will be caught by the fine mesh (.125)..
Porschetech3 is offline
Old 06-25-2019, 02:46 AM
  #6
mattie_k
User

Join Date: Jan 2014
Location: Pemberton
Posts: 199
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by Porschetech3
I don't know of any data anywhere, but from what I can see without slicing a head in sections with a water jet, the smallest passage appears to be the slots in the block deck to the cylinders, you can see them in the pictures. They range from .165 to .225, so anything that can block them will be caught by the fine mesh (.125)..
I wonder if there is a easy/good source for stainless mesh (like in reusable oil filter cartridge filters) to do this with? Perhaps a kit could be made for field testing these awesome debris filters?! I'll beta test!
mattie_k is offline
Old 06-25-2019, 09:07 AM
  #7
Scott at Team Harco
Just a car guy
Rennlist Member


Scott at Team Harco's Avatar

Join Date: Jan 2002
Location: South Lyon, Michigan, Ewe Ess Eh
Posts: 7,498
Received 22 Likes on 20 Posts
Default

So what is the theory on how the blades were taken out?

How is the screen held in place? Spring tension? I take it the finer mesh screen is 'tabbed' to the coarser mesh?
Scott at Team Harco is offline
Old 06-25-2019, 10:49 AM
  #8
808Bill
Super User

808Bill's Avatar

Join Date: Dec 2016
Location: Kauai
Posts: 4,831
Received 17 Likes on 10 Posts
Default

I too would be concerned with the fiber/mesh softening and getting clogged up in there. Seems like a great idea though, thanks for sharing.
808Bill is offline
Old 06-25-2019, 01:46 PM
  #9
Porschetech3
User
Thread Starter

Porschetech3's Avatar

Join Date: Oct 2010
Location: Alabama USA
Posts: 1,421
Received 6 Likes on 6 Posts
Default

Originally Posted by mattie_k View Post
I wonder if there is a easy/good source for stainless mesh (like in reusable oil filter cartridge filters) to do this with? Perhaps a kit could be made for field testing these awesome debris filters?! I'll beta test!
Yea, that's exactly what I was looking for, but couldn't find a source.
Porschetech3 is offline
Old 06-25-2019, 01:51 PM
  #10
SoCal911t
Addict
Rennlist Member

SoCal911t's Avatar

Join Date: Apr 2005
Location: Sandy Eggo
Posts: 428
Likes: 0
Received 8 Likes on 7 Posts
Default

Originally Posted by mattie_k View Post
I wonder if there is a easy/good source for stainless mesh (like in reusable oil filter cartridge filters) to do this with? Perhaps a kit could be made for field testing these awesome debris filters?! I'll beta test!
Originally Posted by Porschetech3 View Post
Yea, that's exactly what I was looking for, but couldn't find a source.

Try here: https://www.mcmaster.com/mesh
SoCal911t is offline
Old 06-25-2019, 02:16 PM
  #11
Porschetech3
User
Thread Starter

Porschetech3's Avatar

Join Date: Oct 2010
Location: Alabama USA
Posts: 1,421
Received 6 Likes on 6 Posts
Default

Originally Posted by Scott at Team Harco View Post
So what is the theory on how the blades were taken out?

How is the screen held in place? Spring tension? I take it the finer mesh screen is 'tabbed' to the coarser mesh?
The sealed bearings in the water pump( think IMSB) started to fail causing a wobble of the shaft and impeller, the impeller contacted the case breaking the tips. V. Yes the welded mesh is held in with spring tension and tabs, the fiber mesh is laced/ tabed at the edges..
Porschetech3 is offline
Old 06-25-2019, 02:21 PM
  #12
Porschetech3
User
Thread Starter

Porschetech3's Avatar

Join Date: Oct 2010
Location: Alabama USA
Posts: 1,421
Received 6 Likes on 6 Posts
Default

Originally Posted by 808Bill View Post
I too would be concerned with the fiber/mesh softening and getting clogged up in there. Seems like a great idea though, thanks for sharing.
Yea I thought about that, but I think the fiberglass mesh will be fine in that environment. But this is a test and I will know in years to come.For me I think risk is worth not having water pump debris circulating.
Porschetech3 is offline
Old 06-25-2019, 03:07 PM
  #13
Porschetech3
User
Thread Starter

Porschetech3's Avatar

Join Date: Oct 2010
Location: Alabama USA
Posts: 1,421
Received 6 Likes on 6 Posts
Default

Originally Posted by SoCal911t View Post
The problem I found in searching this source and others , is that the fine mesh stainless steel or similar is a woven strand, NOT WELDED.The woven strand wire cloth tend to unravel at the edges, that's why I chose the smallest welded wire cloth I could find which is .250, and used the fiberglass cloth as the fine mesh (.125)
Porschetech3 is offline
Old 06-25-2019, 05:30 PM
  #14
Imo000
Captain Obvious
Super User

Imo000's Avatar

Join Date: Aug 2003
Location: Cambridge, Ontario, Canada
Posts: 21,234
Likes: 0
Received 6 Likes on 5 Posts
Default

They do get lodged in the head. I have physical an photographic proof. Had a piece fall out when I had my heads off. Look up my "Dragged me home one of these" thread and you will see the picture of the piece that fell out of the head when I was lapping the valves. The piece was from a previous pump that the owner replaced some time before I bought the car with bent valves.
Imo000 is offline
Old 06-25-2019, 06:11 PM
  #15
Porschetech3
User
Thread Starter

Porschetech3's Avatar

Join Date: Oct 2010
Location: Alabama USA
Posts: 1,421
Received 6 Likes on 6 Posts
Default

Originally Posted by Imo000 View Post
They do get lodged in the head. I have physical an photographic proof. Had a piece fall out when I had my heads off. Look up my "Dragged me home one of these" thread and you will see the picture of the piece that fell out of the head when I was lapping the valves. The piece was from a previous pump that the owner replaced some time before I bought the car with bent valves.
Yes, this was my main concern, and the reason I designed and install the catch screens. I wish I had thought about it and put them in YEARS AGO !!
Porschetech3 is offline
