993 RS Steering Wheel Installed - wiring photos


Old 11-27-2011, 07:49 PM
  #1
ToSi
Addict
Rennlist Member
Thread Starter

ToSi's Avatar

Join Date: Feb 2005
Posts: 658
Likes: 0
Received 1 Like on 1 Post
Default 993 RS Steering Wheel Installed - wiring photos

Took a few pictures while installing a new 993RS steering wheel this weekend. While I was able to find plenty of threads & general info about the wheel/hub, the wiring bits weren't documented so well & lead to a few surprises.. hopefully these help someone else.

The clockspring connectors are interchangeable between 993 / 996 / 986 Boxster. Ordering the wheel from Carnewal gets you the wheel/hub (duh), horn contact plug/pin, & the 2.8ohm resistor.

Part#'s:
Wheel + Hub assembly: 993-347-084-80-8YR
Horn switch contact: 964-652-104-00
Airbag connectors: tbd
Pin for turn signal switch connector: 999.652.639.22 (Identified by Cupcar here -> https://rennlist.com/forums/9314265-post1.html)

Before we begin, some disclaimers are necessary due to the sensitive subject matter of defeating a supplemental restraint system:
1) By opening this post, you agree to hold the author (me!) completely non-liable for any consequences you incur (or do not incur) as a result of this post.
2) You fully understand the implications and bear the burden of removing an airbag from a vehicle, should you choose to & will not look to blame someone else (especially me) for an undesirable consequence of your actions.
3) You read this on the internet. If something goes wrong, think of how stupid you'll sound when you proclaim to your spouse, significant other, parol officer, parents etc.. 'but I read it on the internet'. Say it out loud now, in the presence of another human to convince yourself how silly this excuse sounds.
4) Your car wants you to die & will try to kill you whenever it gets an opportunity to do so. It is dangerous by nature. Do not assume that because you've named it & have 'love' for it that this isn't true. You're the frog to Porsche's scorpion here..


Disconnect the battery, wait for good measure, then remove steering wheel (covered elsewhere, here's a good link -> https://rennlist.com/forums/8877053-post1.html):


Loosen this 8mm bolt to free the switch assembly:


Wiring bundle happily tied back for ~15yrs:


Taking a closer look, later cars (9*6) will have one orange, one red connector - they are interchangeable:


p/n 964.652.104.00


Presses in from the front:


& pokes through the switch..


adding another pin (#71) to the rear:


Problem is that this pin isn't populated in the mating connector since the horn circuit is carried through the clockspring in airbag equipped cars (photo upside down, look at the upper left cavity in the connector):
[/IMG]

Opening the connector & viewing from the backside:


Goals -
1) populate Pin71 (Horn circuit) & provide connection to horn circuit in 'OEM-like' manner. ** P/N for Pin 71 is 999.652.639.22 **
2) Fool airbag diagnostics to prevent fault code / warning light.

Rules -
1) do no harm - no cutting of underdash harness or hokey wiring that can fail, short, or cause future headaches.

Solutions -
1) obtain mating connectors from Porsche salvage yard (Oklahoma Foreign was accommodating & helpful)
2) obtain 2.8ohm resistor to mimic airbag
3) make jumper harnesses as below:

Parts:


Airbag control module diagnostic foolery:


Horn wiring jumper harness (brown-only wire is the original ground, don't have the correct tools to de-pin these yet so it will wait as is):


Soldered & heat shrinked (use a glob of liquid electrical tape underneath heatshrink to keep moisture out):


Pin71 again - if you'd rather be 'creative', splice Pin71 to the brown wire w/ white stripe via any means possible. You've been warned though..


Populated into connector:


From the mating side:


plugged in (brown-only wire is the original ground, don't have the correct tools to de-pin these yet so it will wait as is):


Loosely secured with zip-tie:


Installation is the reverse of removal:


Column shrouds / trim reattached (replace with 964 parts for improved fit / finish - not pictured)


Horn contact rides along slip ring to complete horn circuit (wheel is upside down in photo, black tab must be on left side to install)


Adjust switch assembly to ensure contact to slip ring on hub (gently pull toward you until it touches the back of the wheel / hub), view from top:


Tighten 8mm bolt:

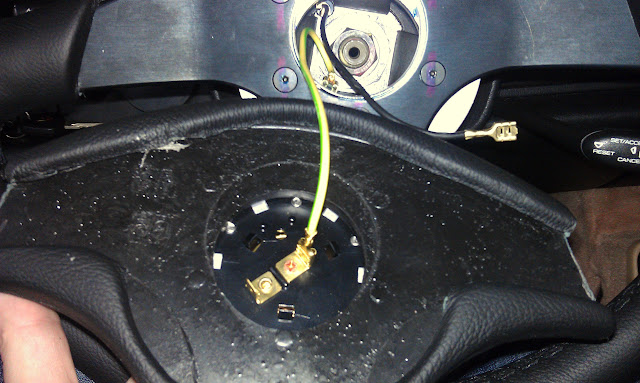

Attach connectors on backside of horn pad:


Test the horn!
(vid goes here)

Behold, a proper 3-spoke wheel:



Order 964 trim pieces to avoid gap w/ 993 steering column trim:

Last edited by ToSi; 05-01-2012 at 07:28 PM. Reason: typos, pin p/n (thanks Cupcar!)
ToSi is offline
Old 11-27-2011, 09:34 PM
  #2
JPP
Super User

JPP's Avatar

Join Date: Dec 2008
Location: In front of you and to the left ...
Posts: 5,409
Likes: 0
Received 0 Likes on 0 Posts
Default

These wheels are so beautiful! Thanks for the nice write up.
JPP is offline
Old 11-27-2011, 10:27 PM
  #3
Jim W
User

Jim W's Avatar

Join Date: Oct 2005
Location: SE Wisconsin
Posts: 242
Likes: 0
Received 0 Likes on 0 Posts
Default

Nice write up. I am wondering if this moves the wheel closer to the driver?
I would like that if it did.
Jim W is offline
Old 11-27-2011, 10:56 PM
  #4
BLT4SPD
User

BLT4SPD's Avatar

Join Date: Sep 2009
Location: 8000' in Colorado
Posts: 568
Likes: 0
Received 0 Likes on 0 Posts
Default

GREAT write up! This wheel in on my "must have" list, so I Thank you very much for documenting the process!
BLT4SPD is offline
Old 11-27-2011, 11:59 PM
  #5
ToSi
Addict
Rennlist Member
Thread Starter

ToSi's Avatar

Join Date: Feb 2005
Posts: 658
Likes: 0
Received 1 Like on 1 Post
Default

Originally Posted by Jim W View Post
Nice write up. I am wondering if this moves the wheel closer to the driver?
I would like that if it did.
Thanks, The RS wheel is 360mm (vs. 380mm) in diameter, moves ~10mm closer to driver, & up by ~10mm due to an off-center adapter incorporated between the wheel & hub. Looks like a collection of standard Momo parts so it should be possible to use an additional spacer to bring the wheel even closer to the driver & mount 'on-axis'. So far, the offset hasn't bothered me though.

ToSi is offline
Old 11-28-2011, 11:30 AM
  #6
JPP
Super User

JPP's Avatar

Join Date: Dec 2008
Location: In front of you and to the left ...
Posts: 5,409
Likes: 0
Received 0 Likes on 0 Posts
Default

^^^ I think Porsche also offered a 'hub system' that brought the stock wheels further aft for tall drivers .. and it was probably either Momo or Nardi based as a vendor.
JPP is offline
Old 11-29-2011, 09:37 AM
  #7
frenchclubsport

Join Date: Oct 2011
Location: FRANCE
Posts: 3
Likes: 0
Received 0 Likes on 0 Posts
Default

I did this upgrade last sunday.
You also have to change the "standard switch housing" in 3 parts by a "993 RS switch housing" : for just 60$ more.
ref.:
964 552 273 0 & 964 552 273 1
frenchclubsport is offline
Old 11-29-2011, 01:22 PM
  #8
csmab
Addict
Rennlist Member

csmab's Avatar

Join Date: Aug 2009
Location: Plano, TX
Posts: 525
Likes: 0
Received 1 Like on 1 Post
Default

When you disconnect the battery is it sufficient to just disconnect the negative terminal or should you disconnect both positive and negative? I know it is a lame question but I will be replacing my wheel in a couple of months.

Last edited by csmab; 11-29-2011 at 10:13 PM.
csmab is offline
Old 11-29-2011, 06:03 PM
  #9
frenchclubsport

Join Date: Oct 2011
Location: FRANCE
Posts: 3
Likes: 0
Received 0 Likes on 0 Posts
Default

Just the negative is OK.. the most important is to wait for 30minutes.
frenchclubsport is offline
Old 01-01-2012, 07:57 PM
  #10
windydog
User

windydog's Avatar

Join Date: Oct 2009
Location: Orange County, CA
Posts: 561
Likes: 0
Received 0 Likes on 0 Posts
Default

Update: I guess the correct question is how do you align the tab with the hub? I have been playing with it for a while. I can't seem to find the sweet spot where the horn will work when I start to turn the steering wheel.

What is the trick???
windydog is offline
Old 01-01-2012, 08:32 PM
  #11
ToSi
Addict
Rennlist Member
Thread Starter

ToSi's Avatar

Join Date: Feb 2005
Posts: 658
Likes: 0
Received 1 Like on 1 Post
Default

No tricks, make sure the hub is snug & fully seated. Then pull the switch assembly gently towards the wheel. If the hub is cocked, the tab won't remain in contact w/ the slip ring & you'll have the issue you describe.

Like this:
ToSi is offline
Old 01-01-2012, 11:03 PM
  #12
windydog
User

windydog's Avatar

Join Date: Oct 2009
Location: Orange County, CA
Posts: 561
Likes: 0
Received 0 Likes on 0 Posts
Default

I will continue to play with it. Hooking up the horn has to be one of the most fustrating things i did all week.

Thanks for your post! It really helped me out. If you lived in Orange County I would buy you a beer!
windydog is offline
Old 01-02-2012, 01:24 AM
  #13
tdarby
Addict
Rennlist Member

tdarby's Avatar

Join Date: Aug 2007
Location: New Jersey
Posts: 252
Likes: 0
Received 0 Likes on 0 Posts
Default

I have one of these wheels brand new in box i would sell. pm me if interested.
Todd
tdarby is offline
Old 01-02-2012, 02:03 PM
  #14
chris walrod
Guru
Lifetime Rennlist
Member


Rennlist Small
Business Sponsor


chris walrod's Avatar

Join Date: Aug 2001
Location: yorba linda, ca
Posts: 15,615
Likes: 0
Received 1 Like on 1 Post
Default

excellent write up!!
chris walrod is offline
Old 01-03-2012, 02:52 AM
  #15
csertich
Addict
Rennlist Member


csertich's Avatar

Join Date: Jun 2003
Location: Germantown, TN
Posts: 3,087
Likes: 0
Received 0 Likes on 0 Posts
Default

Great writeup!. Beautiful wheel. One of the best!
chuck
csertich is offline
