Originally Posted by Gregg-K View Post
The "12 volt LEDs" should have a series resistor built in, but those are not very common.

.. Gregg
Golly, Gregg, I picked mine up at Radio Shack last year. (They didn't seem to be all that uncommon.)

Right on the package they said, "12V, blah-blah mA". Found them in the small item pull-out drawers in the store's hobbyist/geeks-only area.

Frankly, just finding the optimum replacement color, white - not red - was the biggest problem.
They were out of whites at the time.
I finally grabbed 3 reds, soldered them in, and all's been fine.
(But I still wish they'd had the selection of whites as they had reds...)
elbeee964 is offline
Old 11-23-2009, 05:39 PM
  #17
alfred_hybrid
User
Thread Starter

alfred_hybrid's Avatar

Join Date: Oct 2008
Location: South Bend, IN
Posts: 421
Default

Originally Posted by elbeee964 View Post
I finally grabbed 3 reds, soldered them in, and all's been fine.
(But I still wish they'd had the selection of whites as they had reds...)
Fry's only had red when I bought them too. Installed them, but bought white later. Will be installing white soon.
alfred_hybrid is offline
Old 11-23-2009, 06:58 PM
  #18
Computamedic
User

Computamedic's Avatar

Join Date: Dec 2003
Location: Milton Keynes, UK
Posts: 1,632
Default

I did mine several years ago when I saw the article on John's web site. I tried white LEDs first but it was like beacon shining out from the console. I changed them to red and it was much better. I found the red transparent facing on the console was completely overpowered by the light of the white LEDs and the resultant light was VERY white. The red LEDs toned it down sufficiently to make it match with everything else.

I, too, didn't have any trouble getting 12 volt LEDs (from Maplins in the UK) and needed no series resistors - and they've been there for at least 3 years now.

Regards

Dave
Computamedic is offline
Old 11-24-2009, 05:21 AM
  #19
Harry Apps
User

Harry Apps's Avatar

Join Date: Sep 2004
Location: Norfolk, UK
Posts: 487
Default

As Dave said, red LEDs are better for this - they match the red filter built into the housing and give better, warmer red lighting. I also used Maplins and it cost c 85p for three. Make sure that the centre led is reversed before soldering to match the printed circuit board polarity.
Harry Apps is offline
Old 05-18-2010, 07:11 PM
  #20
boxsey911
Super User

boxsey911's Avatar

Join Date: Feb 2007
Location: Cheshire, UK
Posts: 5,096
Default

Originally Posted by Harry Apps View Post
As Dave said, red LEDs are better for this - they match the red filter built into the housing and give better, warmer red lighting. I also used Maplins and it cost c 85p for three. Make sure that the centre led is reversed before soldering to match the printed circuit board polarity.
I plan to replace my blown console lights with LEDs this weekend. However, John's DIY on Porsche964.co.uk is not available at the moment. So, can anyone offer any pointers on soldering in the LEDs? Particularly, how I make sure I get the polarity correct (as Harry mentions above)?

Also, I found the LEDs available HERE ....should I get the 'HE red' or 'red SB'?
boxsey911 is offline
Old 05-19-2010, 02:56 AM
  #21
Computamedic
User

Computamedic's Avatar

Join Date: Dec 2003
Location: Milton Keynes, UK
Posts: 1,632
Default

Steve,

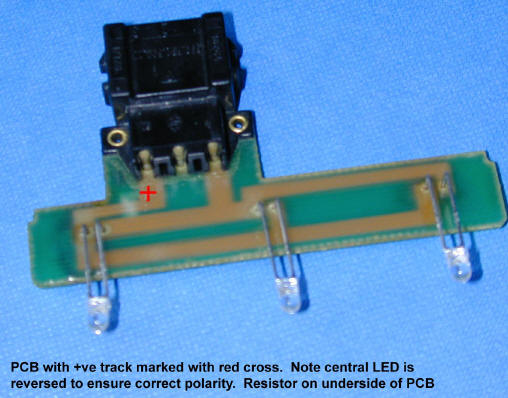

The polarity issue is just a matter of making sure you reverse the centre LED. The PCB layout (as you can see from the diagram) just happens to be that way.



The choice on Superbright (SB) or High Efficiency (HE) is up to you. The SB are MUCH brighter and I'd be inclined to use those - but, to be perfectly honest, if you make a mistake it's not going to break the bank!!

I assume John has finally let the porsche964.co.uk domain lapse. I have most of the site captured so if anyone is desperate I can probably dig it out.

Regards

Dave
Computamedic is offline
Old 05-19-2010, 04:18 AM
  #22
boxsey911
Super User

boxsey911's Avatar

Join Date: Feb 2007
Location: Cheshire, UK
Posts: 5,096
Default

Brilliant Dave! That pic helps a lot
boxsey911 is offline
Old 05-22-2010, 04:24 PM
  #23
boxsey911
Super User

boxsey911's Avatar

Join Date: Feb 2007
Location: Cheshire, UK
Posts: 5,096
Default

Successfully managed to install some LEDs in the console today. Thank you to those who posted on this thread.

For those like me that are new to soldering in LEDs, the best tip I can give is that the long leg of the LED is the positive side. With this in mind I marked the positive side with red pen before cutting them to size.

New LEDs shining bright on the board:



A centre console that now lights up

boxsey911 is offline
Old 05-22-2010, 09:49 PM
  #24
stinkydog
User

stinkydog's Avatar

Join Date: Oct 2008
Location: MT, USA
Posts: 191
Default

This is kind of off-topic, but my little sticker (with the hazard triangle, key, and exclamation point) came loose and doesn't have enough adhesive to stick back down properly. Any ideas on a cheap remedy that won't make a big mess? I was thinking maybe a dab of rubber cement?
