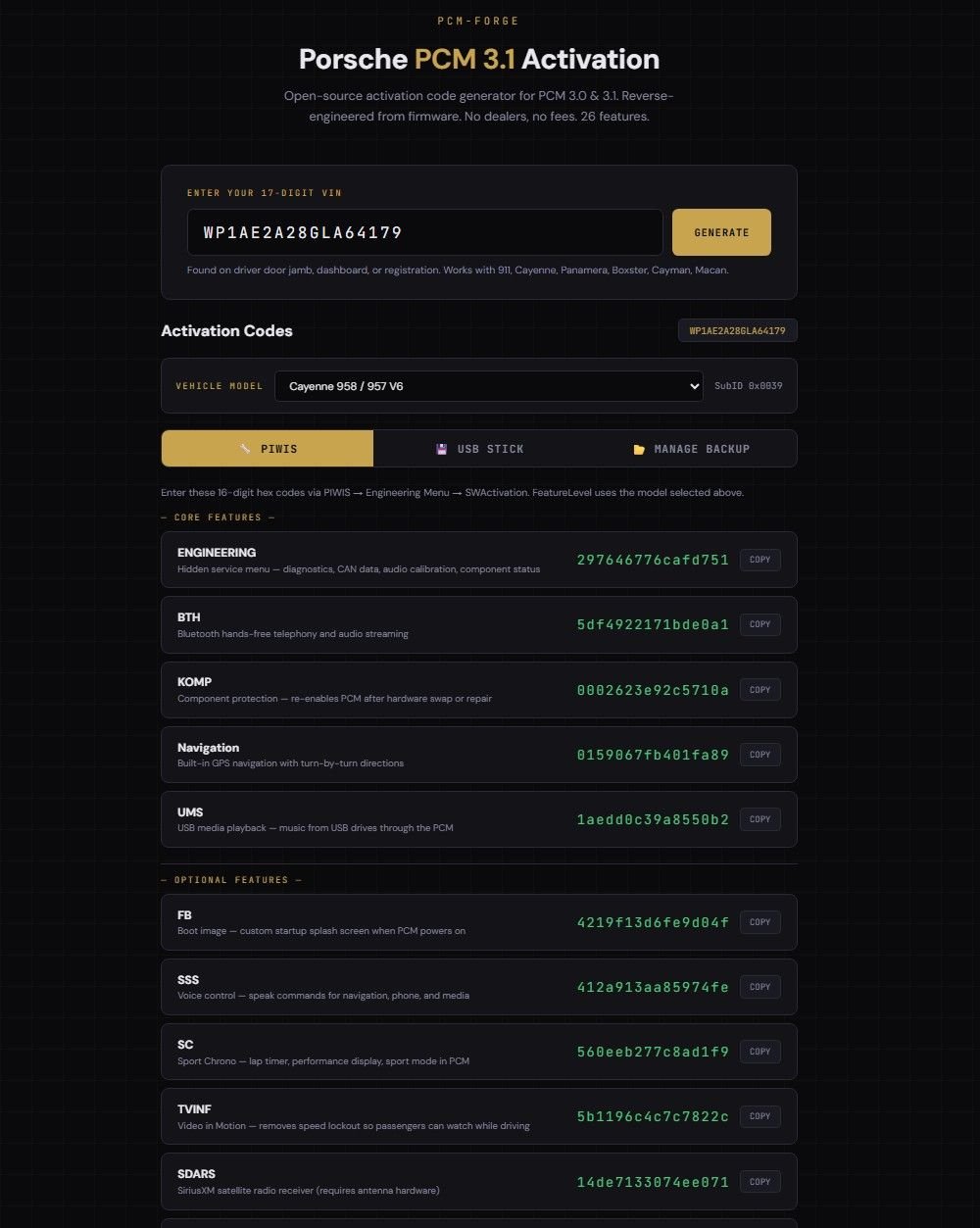

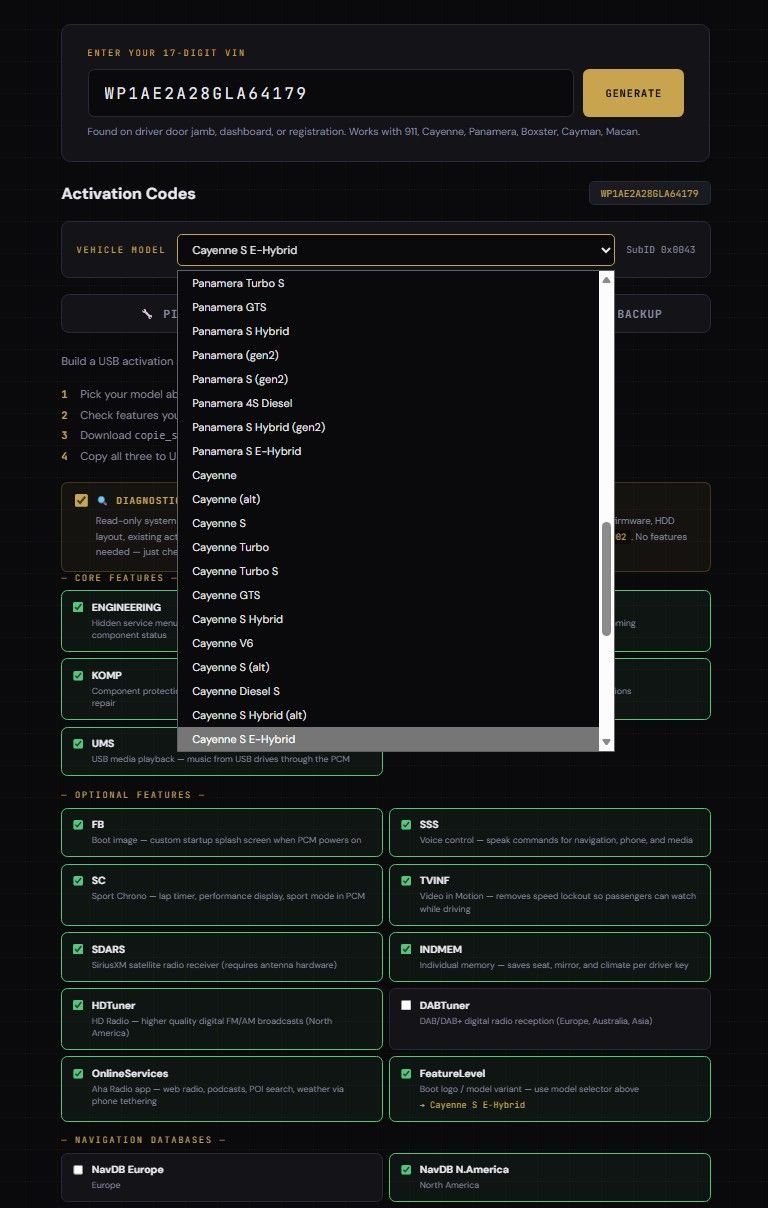

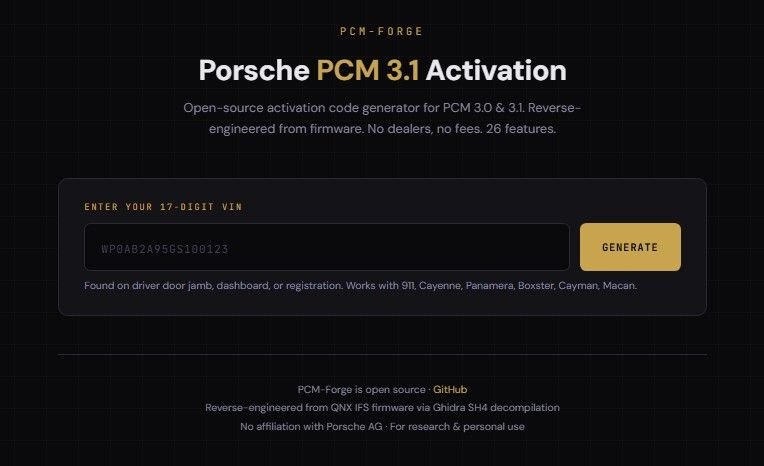

Greetings. Further down you will find PCM-Forge Tool

I have been doing some Audi MMI Harman Becker work and broke open some things. I realized the PCM3/3.1 is the same gen Harman Becker QNX. All my tools worked on the PCM too...

USB stick diag tool. More to come. Working some bugs out.

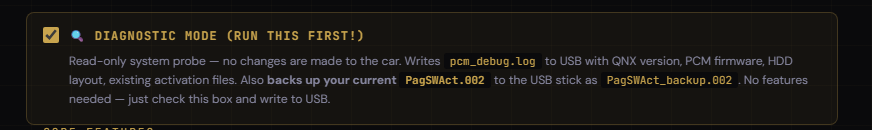

=== PCM-Forge diagnostic ===
PID: 282688
USBROOT: /mnt/umass20100t12

=== PCM Version ===
System_CD:
Porsche_PCM3.1_MOPF_SOP_STEP9.6_15245AS9
#
HMIController:
15245AS9
#
OfficialBuild:
OEKAP3NT_cbuild_PCM3__Fri_2015.06.12__14.32.59
#
QNX_Version:
RL_qnx_os_632_PSP3_11505A
#
MME_Version:
RL_qnx_mme_v2_alpha_20_10_9_25_1_13254A
#
IFS-Type:
IFS_G1_E2
#
System_CD:
Porsche_PCM3.1_MOPF_SOP_STEP9.6_15245AS9
#
HMIController:
15245AS9
#
OfficialBuild:
OEKAP3NT_cbuild_PCM3__Fri_2015.06.12__14.32.59
#
QNX_Version:
RL_qnx_os_632_PSP3_11505A
#
MME_Version:
RL_qnx_mme_v2_alpha_20_10_9_25_1_13254A
#
IFS-Type:
IFS_G1_E2
#

=== IFS Build Timestamps ===
-rw-rw-rw- 1 root 0 2108 Jun 12 2015 /proc/boot/.script
-rwxrwxrwx 1 root 0 15940 Dec 02 2013 /mnt/ifs1/HBbin/proc_scriptlauncher

=== Existing Activation Files ===
-rw-r--r-- 1 root 0 28 Apr 18 08:15 /HBpersistence/PagSWAct.002
-rw-rw-rw- 1 root 0 0 Apr 18 11:06 /HBpersistence/DBGModeActive
ls: No such file or directory (/HBpersistence/incar)
-rw-rw-rw- 1 root 0 35394 Dec 02 2013 /HBpersistence/CustomBootscreen_067.bin

=== Backup PagSWAct.002 ===
Backed up to USB
--- hex dump ---
./run.sh[75]: od: not found

=== mount ===
/mnt/share/HBdata/ISOImage/sss_tts.iso on /HBdata type cd (joliet)
/mnt/nav/pkgdb/SDS_NA_4_7_1/SDS_Data.iso on /SDS type cd (joliet)
/dev/umass/usb20100t12 on /mnt/umass20100t12 type dos (fat32)
/dev/hd0t77 on /mnt/data type qnx6
/dev/hd0t81 on /mnt/media type qnx6
/dev/hd0t80 on /mnt/pv-cache type qnx6
/dev/hd0t78 on /mnt/share type qnx6
/mnt/share/xm/iso/xm_defaultV2_icons.iso on /mnt/share/xm/icons/defaultV2 type cd (joliet)
/dev/hd0t79 on /mnt/nav type qnx4
/dev/umass/usb20100t12 on /fs/usb1 type dos (fat32)
/dev/umass/usb20100t12 on /fs/usb0 type dos (fat32)
/dev/blk/ram-0-alloc-0-tmp on /fs/tmpfs type tmp
multicored on /hbsystem/multicore type multicore
/dev/fs0p2 on /UpdateHistory type flash
/dev/fs0p1 on /HBpersistence type flash

=== Disk Usage ===
/mnt/share/HBdata/I 847288 847288 0 100% /HBdata/
/mnt/nav/pkgdb/SDS_ 250972 250972 0 100% /SDS/
/dev/umass/usb20100 7413728 64 7413664 1% /mnt/umass20100t
/dev/hd0t77 4208928 198064 4010864 5% /mnt/data/
/dev/hd0t81 84180504 12661936 71518568 16% /mnt/media/
/dev/hd0t80 2104416 80172 2024244 4% /mnt/pv-cache/
/dev/hd0t78 2104480 1029256 1075224 49% /mnt/share/
/mnt/share/xm/iso/x 3776 3776 0 100% /mnt/share/xm/ic
/dev/hd0t79 102767805 44397207 58370598 44% /mnt/nav/
/dev/blk/ram-0-allo 32768 1392 31376 5% /fs/tmpfs/
/hbsystem/multicore 5708 0 5708 0% /hbsystem/multic
/dev/fs0p2 512 53 458 11% /UpdateHistory
/dev/fs0p1 30208 8062 22145 27% /HBpersistence
/dev/umass/usb20100 15818752 15818752 0 100%
/dev/hd0 195371568 195371568 0 100%
/dev/cd0 0 0 0 100%

=== HDD Partition Table ===

_____OS_____ Start End ______Number______ Size Boot
name type Cylinder Cylinder Cylinders Blocks

1. QNX 77 0 2054 2055 4208967 2055 MB *
2. QNY 78 2055 3081 1027 2104515 1027 MB
3. QNZ 79 3082 53261 50180 102767805 50179 MB
4. Extd'd 5 53262 95392 42131 86285115 42131 MB


=== / ===
total 566768
drwxr-xr-x 2 root 0 10 Jun 12 2015 HBbin
dr-xr-xr-x 2 root 0 2048 Dec 02 2013 HBdata
drwxrwxr-x 15 root 0 2900 Jun 12 2015 HBpersistence
drwxr-xr-x 2 root 0 40 Jun 12 2015 HBproject
lr-xr-xr-x 1 root 0 18 Jun 12 2015 HNbin -> /mnt/ifs_app/HNbin
dr-xr-xr-x 2 root 0 8192 Mar 03 2015 SDS
lr-xr-xr-x 1 root 0 22 Jun 12 2015 SDSTemp -> /HBpersistence/SDSTemp
drwxrwxr-x 2 root 0 204 Jun 12 2015 UpdateHistory
drwxr-xr-x 2 root 0 10 Jun 12 2015 bin
lrwxrwxrwx 1 root 0 16 Apr 18 12:05 database -> /mnt/share/acios
drwxr-xr-x 2 root 0 10 Jun 12 2015 dev
dr-xr-xr-x 2 root 0 10 Jan 01 1970 etc
dr-xr-xr-x 2 root 0 0 Apr 18 12:05 fs
dr-xr-xr-x 2 root 0 0 Apr 18 12:05 hbsystem
drwxr-xr-x 2 root 0 10 Jun 12 2015 lib
drwxr-xr-x 2 root 0 10 Jun 12 2015 mnt
dr-xr-xr-x 2 root 0 290164736 Apr 18 12:05 proc
drwxr-xr-x 2 root 0 10 Jun 12 2015 sbin
dr-xr-xr-x 2 root 0 0 Apr 18 12:05 srv
lr--r--r-- 1 root 0 10 Jun 12 2015 tmp -> /dev/shmem
drwxr-xr-x 2 root 0 10 Jun 12 2015 usr

=== /fs ===
total 24
drwxrwxrwt 2 root 0 4096 Apr 18 12:05 tmpfs
drwxrwxrwx 3 root 0 4096 Apr 18 12:05 usb0
drwxrwxrwx 3 root 0 4096 Apr 18 12:05 usb1

=== /HBpersistence ===
total 685
-rw-rw-rw- 1 root 0 72906 Dec 02 2013 96xx.txt
-rwxrwxrwx 1 root 0 9 Dec 02 2013 CVALUE0002021b.CVA
-rw------- 1 root 0 12 Jan 01 2007 CVALUE00020226.CVA
-rw------- 1 root 0 12 Jan 01 1970 CVALUE0002032d.CVA
-rwxrwxrwx 1 root 0 172 Dec 02 2013 CVALUE000203b3.CVA
-rwxrwxrwx 1 root 0 13 Dec 02 2013 CVALUE0002064d.CVA
-rw------- 1 root 0 170 Jan 01 1970 CVALUE00020685.CVA
-rw------- 1 root 0 4270 Mar 09 2016 CVALUE00020686.CVA
-rw------- 1 root 0 488 Jan 01 1970 CVALUE00020687.CVA
-rwxrwxrwx 1 root 0 12 Dec 02 2013 CVALUE0002068c.CVA
-rwxrwxrwx 1 root 0 12 Dec 02 2013 CVALUE0002068d.CVA
-rw------- 1 root 0 10 Feb 05 2016 CVALUE0002068e.CVA
-rw------- 1 root 0 5742 Feb 05 2016 CVALUE0002068f.CVA
-rw------- 1 root 0 12 Jan 01 2007 CVALUE010b0006.CVA
-rw-rw-rw- 1 root 0 3299 Dec 02 2013 Check_HDD.sh
-rw-rw-rw- 1 root 0 52 Dec 02 2013 CsiConfig1.csi
-rw-rw-rw- 1 root 0 35394 Dec 02 2013 CustomBootscreen_067.bin
-rw-rw-rw- 1 root 0 0 Dec 02 2013 DABTunerDeviceData
-rw-rw-rw- 1 root 0 0 Apr 18 11:06 DBGModeActive
-rw-rw-rw- 1 root 0 0 May 20 2019 DTCPSuccessfulStored
drwxr-xr-x 2 root 0 2104 Jan 01 1970 EarlyPersistencyFiles
-rw-rw-rw- 1 root 0 1796 Jan 01 2007 HBProdSMARTData-2007-01-01_000808.txt
drwxr-xr-x 2 root 0 3476 Jan 01 1970 NormalPersistencyFiles
-rw-rw-rw- 1 root 0 970 Jan 01 1970 PDL.dat
-rw-r--r-- 1 root 0 28 Apr 18 08:15 PagSWAct.002
drwxrwxr-x 2 root 0 264 Jun 12 2015 QNXTools
drwxr-xr-x 2 root 0 0 Jan 01 1970 SDSTemp
drwxr-xr-x 2 root 0 0 Jan 01 1970 SWDL
-rw-rw-rw- 1 root 0 8 Dec 02 2013 TouchCalib.bin
drwxrwxr-x 2 root 0 56 Jun 12 2015 TraceProfiles
-rw-r--r-- 1 root 0 37888 Jan 01 1970 addressbookSql.db
-rw-r--r-- 1 root 0 1 Jan 01 1970 addressbookSql.db.check
-rw-rw-rw- 1 root 0 0 Jan 01 2007 audioAmpBOSE
-rwxrwxrwx 1 root 0 766 Jan 01 2007 audiomixer-ann-levels.txt
-rw-rw-rw- 1 root 0 766 Dec 02 2013 audiomixer-ann-levels_ASK.txt
-rw-rw-rw- 1 root 0 766 Dec 02 2013 audiomixer-ann-levels_BOSE.txt
-rw-rw-rw- 1 root 0 766 Dec 02 2013 audiomixer-ann-levels_BURMESTER.txt
-rw-rw-rw- 1 root 0 3532 Apr 18 11:22 audiomixer-settings.txt
-rw-rw-rw- 1 root 0 296 Jan 01 2007 audiomixer-tlam-offset.txt
-rwxrwxrwx 1 root 0 5540 Jan 01 2007 audiomixer.txt
-rw-rw-rw- 1 root 0 5748 Dec 02 2013 audiomixer_ASK.txt
-rw-rw-rw- 1 root 0 5540 Dec 02 2013 audiomixer_BOSE.txt
-rw-rw-rw- 1 root 0 5444 Dec 02 2013 audiomixer_BURMESTER.txt
-rw-rw-rw- 1 root 0 13 Jan 01 1970 bdaddr.txt
-rw-rw-rw- 1 root 0 52 Apr 18 11:12 bss.ddb
-rwxrwxrwx 1 root 0 154 Apr 16 09:10 copie_scr.sh
-rw-rw-rw- 1 root 0 2451 Jun 12 2015 debugTools.sh
-rw-r--r-- 1 root 0 231 Apr 18 11:12 hybrid.bin
-rw-r--r-- 1 root 0 122880 Feb 13 2019 io-media-margi.core
drwxrwxr-x 2 root 0 204 Jun 12 2015 ipod
drwxrwxrwx 2 root 0 140 Jan 01 2007 logbook
drwxr-xr-x 4 root 0 144 Jan 01 1970 navi
-rw-rw-rw- 1 root 0 0 Jan 01 2007 persistTracePCM3Reload.bin
-rw-rw-rw- 1 root 0 0 Jan 01 1970 persistTracePCM3Root.bin
drwxrwxr-x 3 root 0 36 Jun 12 2015 pss
drw-r--r-- 2 root 0 0 Jan 01 2007 sportchrono
drwxrwxr-x 3 root 0 288 Jun 12 2015 sss
-rwxrwxrwx 1 root 0 324 Dec 02 2013 test.html
-rwxrwxrwx 1 root 0 284 Dec 02 2013 test1.html
-rw-r--r-- 1 root 0 17 Apr 18 12:05 vin
drwxrwxr-x 2 root 0 920 Jun 12 2015 wave
-rw-rw-rw- 1 root 0 6673 Dec 02 2013 xmChannelGuide
-rw-rw-rw- 1 root 0 1 Dec 02 2013 xmHardware

=== /HBpersistence/QNXTools ===
total 71
-rwxrwxrwx 1 root 0 12228 Dec 02 2013 cksum
-rwxrwxrwx 1 root 0 1462 Jun 12 2015 createMemoryOutputFiles.sh
-rwxrwxrwx 1 root 0 916 Jun 12 2015 debugTools.memory
-rwxrwxrwx 1 root 0 2451 Jun 12 2015 debugTools.startup
-rwxrwxrwx 1 root 0 10148 Dec 02 2013 df
-rwxrwxrwx 1 root 0 8451 Dec 02 2013 rootblk_shle

=== /mnt/data ===
total 14
drwxrwxr-x 5 root 0 1024 Jan 01 1970 .
drwxrwxr-x 5 root 0 1024 Jan 01 1970 ..
drwx------ 2 root 0 1024 Jan 01 1970 .boot
drwxrwxrwx 2 root 0 3072 Dec 14 2018 log
drwxrwxrwx 2 root 0 1024 Jan 01 1970 tools

=== /mnt/data/tools ===
total 16051
drwxrwxrwx 2 root 0 1024 Jan 01 1970 .
drwxrwxr-x 5 root 0 1024 Jan 01 1970 ..
-rwxrwxrwx 1 root 0 822 Dec 02 2013 IPGrab-PCM3Reload.sh
-rwxrwxrwx 1 root 0 808 Dec 02 2013 IPGrab-PCM3Root.sh
-rwxrwxrwx 1 root 0 563482 Jun 12 2015 NavigationNdrInfo
-rwxrwxrwx 1 root 0 44433 Dec 02 2013 chkqnx6fs
-rwxrwxrwx 1 root 0 453 Dec 02 2013 collect_rootblk_shle_info.sh
-rwxrwxrwx 1 root 0 116 Dec 02 2013 createMemoryOutputFiles.sh
-rwxrwxrwx 1 root 0 19704 Dec 02 2013 dinit
-rwxrwxrwx 1 root 0 119450 Dec 02 2013 fdisk
-rwxrwxrwx 1 root 0 79280 Dec 02 2013 find
-rwxrwxrwx 1 root 0 7881 Jun 12 2015 flashinfo
-rwxrwxrwx 1 root 0 202598 Jun 12 2015 hbhogs
-rwxrwxrwx 1 root 0 21972 Dec 02 2013 ipgrabber
-rwxrwxrwx 1 root 0 99151 Dec 02 2013 mkqnx6fs
-rwxrwxrwx 1 root 0 232650 Dec 02 2013 mmecli
-rwxrwxrwx 1 root 0 85031 Dec 02 2013 mmexplore
-rwxrwxrwx 1 root 0 278320 Dec 02 2013 persdump2
-rwxrwxrwx 1 root 0 39648 Dec 02 2013 ping
-rwxrwxrwx 1 root 0 45592 Dec 02 2013 qdbc
-rwxrwxrwx 1 root 0 8451 Dec 02 2013 rootblk_shle
-rwxrwxrwx 1 root 0 613836 Dec 02 2013 showmetadata
-rwxrwxrwx 1 root 0 60697 Dec 02 2013 sqlite_console
-rwxrwxrwx 1 root 0 5356602 Dec 02 2013 taco
-rwxrwxrwx 1 root 0 825 Dec 02 2013 taco.hbtc
-rwxrwxrwx 1 root 0 198529 Jun 12 2015 upd_history_reader
-rwxrwxrwx 1 root 0 122764 Dec 02 2013 vi
-rwxrwxrwx 1 root 0 7164 Dec 02 2013 which

=== /mnt/share ===
total 28
drwxrwxr-x 12 root 0 1024 Jan 01 1970 .
drwxrwxr-x 12 root 0 1024 Jan 01 1970 ..
drwx------ 2 root 0 1024 Jan 01 1970 .boot
drwxrwxrwx 2 root 0 1024 Jan 01 1970 Browser
drwxrwxrwx 4 root 0 1024 Jan 01 1970 HBdata
drwxrwxrwx 2 root 0 1024 Jan 01 1970 MapStyles
drwxrwxrwx 2 root 0 1024 Apr 18 10:51 acios
drwxrwxrwx 2 root 0 3072 Jan 01 1970 bootscreens
drwxrwxrwx 2 root 0 1024 Jan 01 1970 mmi
drwxrwxrwx 2 root 0 1024 Jun 16 2015 nobss
drwxrwxrwx 2 root 0 1024 May 20 2019 qdb_backup
drwxrwxrwx 4 root 0 1024 Jan 01 1970 xm

=== ps ===
pid tid name prio STATE Blocked
1 1 procnto 0f READY
1 2 procnto 10r RECEIVE 1
1 3 procnto 10r RECEIVE 1
1 4 procnto 10r RECEIVE 1
1 6 procnto 10r RECEIVE 1
1 8 procnto 10r RECEIVE 1
1 11 procnto 10r RECEIVE 1
1 12 procnto 10r RECEIVE 1
1 13 procnto 10r RECEIVE 1
1 14 procnto 10r RUNNING
1 16 procnto 10r RECEIVE 1
2 1 proc/boot/slogger 10r RECEIVE 1
3 1 c/boot/devc-sersci 10r RECEIVE 1
4 1 ot/srv-starter-QNX 10r RECEIVE 1
4 2 ot/srv-starter-QNX 10r CONDVAR 8069a7c
4 3 ot/srv-starter-QNX 10r SIGWAITINFO
7 1 oc/boot/pci-sh7785 10r RECEIVE 1
7 2 oc/boot/pci-sh7785 21r INTR
4102 1 proc/boot/memifs 9r NANOSLEEP
4104 1 oc/boot/io-display 10r SIGWAITINFO
4104 2 oc/boot/io-display 11r RECEIVE 1
4104 4 oc/boot/io-display 10r RECEIVE 3
4104 5 oc/boot/io-display 10r RECEIVE 1
4104 6 oc/boot/io-display 21r RECEIVE 1
4104 7 oc/boot/io-display 10r RECEIVE 1
4106 1 proc/boot/dev-ipc 18r RECEIVE 4
4106 2 proc/boot/dev-ipc 21r RECEIVE 1
4107 1 boot/dev-videoctrl 10r RECEIVE 1
4108 1 /boot/layermanager 11r RECEIVE 1
4108 2 /boot/layermanager 12r CONDVAR 8052d3c
4110 1 roc/boot/dev-nvram 10r RECEIVE 1
4111 1 proc/boot/io-net 10r SIGWAITINFO
4111 2 proc/boot/io-net 20r RECEIVE 5
4111 3 proc/boot/io-net 10r RECEIVE 1
4111 4 proc/boot/io-net 10r RECEIVE 1
4111 5 proc/boot/io-net 10r RECEIVE 1
4112 1 proc/boot/pipe 10r SIGWAITINFO
4112 2 proc/boot/pipe 10r RECEIVE 1
4112 3 proc/boot/pipe 10r RECEIVE 1
4112 4 proc/boot/pipe 10r RECEIVE 1
4113 1 c/boot/dev-sysregs 10r RECEIVE 1
4113 2 c/boot/dev-sysregs 63r INTR
4114 1 boot/dev-most-mops 10r RECEIVE 10
4114 2 boot/dev-most-mops 21r RECEIVE 1
4114 3 boot/dev-most-mops 21r RECEIVE 4
4116 1 oot/devc-ser8250hb 10r RECEIVE 1
8213 1 oot/dev-spi-hbfpga 10r RECEIVE 1
8213 2 oot/dev-spi-hbfpga 21r INTR
16403 1 t/devb-eide-hbfpga 10r SIGWAITINFO
16403 2 t/devb-eide-hbfpga 21r RECEIVE 1
16403 3 t/devb-eide-hbfpga 21r RECEIVE 4
16403 4 t/devb-eide-hbfpga 10r RECEIVE 10
16403 5 t/devb-eide-hbfpga 10r RECEIVE 7
16403 6 t/devb-eide-hbfpga 10r RECEIVE 7
16403 7 t/devb-eide-hbfpga 10r RECEIVE 14
16403 8 t/devb-eide-hbfpga 10r RECEIVE 14
16403 9 t/devb-eide-hbfpga 10r RECEIVE 17
16403 10 t/devb-eide-hbfpga 21r RECEIVE 7
16403 11 t/devb-eide-hbfpga 10r RECEIVE 7
16403 12 t/devb-eide-hbfpga 10r RECEIVE 17
16403 14 t/devb-eide-hbfpga 21r RECEIVE 7
16406 1 /boot/devf-generic 10r SIGWAITINFO
16406 2 /boot/devf-generic 10r RECEIVE 1
16406 3 /boot/devf-generic 10r RECEIVE 1
16406 4 /boot/devf-generic 10r RECEIVE 1
16406 5 /boot/devf-generic 10r RECEIVE 1
16408 1 proc/boot/ndr 11r RECEIVE 1
16408 2 proc/boot/ndr 10r NANOSLEEP
16408 3 proc/boot/ndr 10r SIGWAITINFO
16408 4 proc/boot/ndr 18r REPLY 36869
16408 5 proc/boot/ndr 18r REPLY 4106
16408 6 proc/boot/ndr 10r SIGWAITINFO
16408 7 proc/boot/ndr 10r NANOSLEEP
16408 8 proc/boot/ndr 10r NANOSLEEP
16408 9 proc/boot/ndr 10r NANOSLEEP
16411 1 oc/boot/dev-dspipc 10r SIGWAITINFO
16411 2 oc/boot/dev-dspipc 20r RECEIVE 4
16411 3 oc/boot/dev-dspipc 10r RECEIVE 6
16411 4 oc/boot/dev-dspipc 11r CONDVAR 8058144
16411 5 oc/boot/dev-dspipc 10r CONDVAR 8058304
16411 6 oc/boot/dev-dspipc 11r CONDVAR 8058294
16411 7 oc/boot/dev-dspipc 11r RECEIVE 6
16411 8 oc/boot/dev-dspipc 11r CONDVAR 8058224
16411 9 oc/boot/dev-dspipc 10r CONDVAR 80584c4
16411 10 oc/boot/dev-dspipc 11r RECEIVE 6
16412 1 1/HBbin/multicored 11f SIGWAITINFO
16412 2 1/HBbin/multicored 10r RECEIVE 1
16412 3 1/HBbin/multicored 11f CONDVAR 8065ba4
16412 4 1/HBbin/multicored 11r NANOSLEEP
16412 5 1/HBbin/multicored 12f CONDVAR 8065e28
16413 1 oject/dev-mv2trace 10r RECEIVE 1
16413 2 oject/dev-mv2trace 10r SIGWAITINFO
16414 1 boot/servicebroker 10r RECEIVE 1
24607 1 HBproject/PCM3Root 63r SIGWAITINFO
24607 2 HBproject/PCM3Root 10r RECEIVE 1
24607 3 HBproject/PCM3Root 30r RECEIVE 8
24607 4 HBproject/PCM3Root 10r RECEIVE 4
24607 5 HBproject/PCM3Root 11r RECEIVE 9
24607 6 HBproject/PCM3Root 11r SEM 57ff40dc
24607 7 HBproject/PCM3Root 11r RECEIVE 11
24607 8 HBproject/PCM3Root 11r SEM 57ff4170
24607 9 HBproject/PCM3Root 10r REPLY 16413
24607 10 HBproject/PCM3Root 30r SEM 57ff4298
24607 11 HBproject/PCM3Root 11r SEM 57ff432c
24607 12 HBproject/PCM3Root 11r SEM 57ff43c0
24607 13 HBproject/PCM3Root 11r SEM 57ff4454
24607 14 HBproject/PCM3Root 11r SEM 57ff44e8
24607 15 HBproject/PCM3Root 11r SEM 57ff457c
24607 16 HBproject/PCM3Root 11r SEM 57ff4610
24607 17 HBproject/PCM3Root 11r SEM 57ff46a4
24607 18 HBproject/PCM3Root 10r SEM 57ff4738
24607 19 HBproject/PCM3Root 11r SEM 57ff47cc
24607 20 HBproject/PCM3Root 11r SEM 57ff4860
24607 21 HBproject/PCM3Root 11r SEM 57ff48f4
24607 22 HBproject/PCM3Root 11r SEM 57ff4988
24607 23 HBproject/PCM3Root 10r SEM 57ff4a1c
24607 24 HBproject/PCM3Root 10r SEM 57ff4ab0
24607 25 HBproject/PCM3Root 11r SEM 57ff4b44
24607 26 HBproject/PCM3Root 10r SEM 57ff4bd8
24607 27 HBproject/PCM3Root 11r SEM 57ff4c6c
24607 28 HBproject/PCM3Root 10r SEM 57ff4d00
24607 29 HBproject/PCM3Root 10r SEM 57ff4d94
24607 30 HBproject/PCM3Root 10r SEM 57ff4e28
24607 31 HBproject/PCM3Root 10r SEM 57ff4ebc
24607 32 HBproject/PCM3Root 11r SEM 57ff4f50
24607 33 HBproject/PCM3Root 11r SEM 57ff4fe4
24607 34 HBproject/PCM3Root 11r SEM 58023078
24607 35 HBproject/PCM3Root 30r CONDVAR 7d95f4c
24607 36 HBproject/PCM3Root 30r REPLY 4
24607 37 HBproject/PCM3Root 30r REPLY 4106
24607 38 HBproject/PCM3Root 30r CONDVAR 7d62f40
24607 39 HBproject/PCM3Root 20r REPLY 2
24607 40 HBproject/PCM3Root 21r REPLY 4106
24607 41 HBproject/PCM3Root 21r CONDVAR 8685864
24607 42 HBproject/PCM3Root 11r REPLY 4106
24607 43 HBproject/PCM3Root 10r RECEIVE 15
24607 44 HBproject/PCM3Root 11r REPLY 16411
24607 45 HBproject/PCM3Root 11r REPLY 4106
24607 46 HBproject/PCM3Root 10r CONDVAR 7cbaf4c
24607 47 HBproject/PCM3Root 11r SIGWAITINFO
24607 48 HBproject/PCM3Root 11r REPLY 16411
24607 49 HBproject/PCM3Root 10r REPLY 16411
24607 50 HBproject/PCM3Root 10r CONDVAR 7c76f4c
24607 51 HBproject/PCM3Root 10r REPLY 16411
24608 1 oot/dev-adjmanager 10r RECEIVE 1
36869 1 HBbin/vdev-flexgps 18r NANOSLEEP
36869 2 HBbin/vdev-flexgps 10r NANOSLEEP
36869 3 HBbin/vdev-flexgps 10r NANOSLEEP
36869 4 HBbin/vdev-flexgps 10r RECEIVE 1
36869 5 HBbin/vdev-flexgps 10r RECEIVE 1
36890 1 sr/usbPowerMonitor 10r NANOSLEEP
36890 2 sr/usbPowerMonitor 10r RECEIVE 1
36890 3 sr/usbPowerMonitor 10r RECEIVE 1
36890 4 sr/usbPowerMonitor 10r RECEIVE 1
36898 1 _app/sbin/io-audio 10r SIGWAITINFO
36898 2 _app/sbin/io-audio 50r INTR
36898 3 _app/sbin/io-audio 50r INTR
36898 4 _app/sbin/io-audio 50r INTR
36898 5 _app/sbin/io-audio 50r INTR
36898 6 _app/sbin/io-audio 50r INTR
36898 7 _app/sbin/io-audio 50r INTR
36898 8 _app/sbin/io-audio 50r INTR
36898 9 _app/sbin/io-audio 10r RECEIVE 1
36898 10 _app/sbin/io-audio 10r RECEIVE 1
36898 11 _app/sbin/io-audio 10r RECEIVE 1
40993 1 r/sbin/io-fs-media 11r RECEIVE 1
40996 1 proc/boot/ksh 30r REPLY 3
73737 1 project/PCM3Reload 30r RECEIVE 1
73737 2 project/PCM3Reload 10r RECEIVE 6
73737 3 project/PCM3Reload 11r RECEIVE 2
73737 4 project/PCM3Reload 11r SEM 57317f64
73737 5 project/PCM3Reload 11r RECEIVE 4
73737 6 project/PCM3Reload 11r SEM 57317ff8
73737 7 project/PCM3Reload 10r REPLY 16413
73737 8 project/PCM3Reload 11r SEM 5730d120
73737 9 project/PCM3Reload 10r SEM 5730d1b4
73737 10 project/PCM3Reload 10r SEM 5730d248
73737 11 project/PCM3Reload 10r SEM 5730d2dc
73737 12 project/PCM3Reload 10r SEM 5730d370
73737 13 project/PCM3Reload 10r SEM 5730d404
73737 14 project/PCM3Reload 10r SEM 5730d498
73737 15 project/PCM3Reload 11r SEM 5730d52c
73737 16 project/PCM3Reload 10r SEM 5730d5c0
73737 17 project/PCM3Reload 10r SEM 5730d654
73737 18 project/PCM3Reload 10r SEM 5730d6e8
73737 19 project/PCM3Reload 10r SEM 5730d77c
73737 20 project/PCM3Reload 10r SEM 5730d810
73737 21 project/PCM3Reload 10r SEM 5730d8a4
73737 22 project/PCM3Reload 10r SEM 5730d938
73737 23 project/PCM3Reload 10r SEM 5730d9cc
73737 24 project/PCM3Reload 10r SEM 5730da60
73737 25 project/PCM3Reload 10r SEM 5730daf4
73737 26 project/PCM3Reload 10r SEM 5730db88
73737 27 project/PCM3Reload 10r SEM 5730dc1c
73737 28 project/PCM3Reload 10r SEM 5730dcb0
73737 29 project/PCM3Reload 10r SEM 5730dd44
73737 30 project/PCM3Reload 10r SEM 5730ddd8
73737 31 project/PCM3Reload 10r SEM 5730de6c
73737 32 project/PCM3Reload 10r SEM 5730df00
73737 33 project/PCM3Reload 10r SEM 5730df94
73737 34 project/PCM3Reload 10r SEM 57508028
73737 35 project/PCM3Reload 10r SEM 575080bc
73737 36 project/PCM3Reload 11r SEM 57508150
73737 37 project/PCM3Reload 11r SEM 575081e4
73737 38 project/PCM3Reload 11r SEM 57508278
73737 39 project/PCM3Reload 10r SEM 5750830c
73737 40 project/PCM3Reload 11r SEM 575083a0
73737 41 project/PCM3Reload 11r SEM 57508434
73737 42 project/PCM3Reload 10r SEM 575084c8
73737 43 project/PCM3Reload 10r SEM 5750855c
73737 44 project/PCM3Reload 10r SEM 575085f0
73737 45 project/PCM3Reload 10r SEM 57508684
73737 46 project/PCM3Reload 10r SEM 57508718
73737 47 project/PCM3Reload 10r SEM 575087ac
73737 48 project/PCM3Reload 10r SEM 57508840
73737 49 project/PCM3Reload 10r SEM 575088d4
73737 50 project/PCM3Reload 10r JOIN 95
73737 51 project/PCM3Reload 10r SEM 575089fc
73737 52 project/PCM3Reload 10r SEM 57508a90
73737 53 project/PCM3Reload 10r SEM 57508b24
73737 54 project/PCM3Reload 11r SEM 57508bb8
73737 55 project/PCM3Reload 10r SEM 57508c4c
73737 56 project/PCM3Reload 10r SEM 57508ce0
73737 57 project/PCM3Reload 10r SEM 57508d74
73737 58 project/PCM3Reload 10r SEM 57508e08
73737 59 project/PCM3Reload 10r SEM 57508e9c
73737 60 project/PCM3Reload 10r SEM 57508f30
73737 61 project/PCM3Reload 10r SEM 57508fc4
73737 62 project/PCM3Reload 10r SEM 57587058
73737 63 project/PCM3Reload 10r SEM 575870ec
73737 64 project/PCM3Reload 10r SEM 57587180
73737 65 project/PCM3Reload 10r SEM 57587214
73737 66 project/PCM3Reload 11r SEM 575872a8
73737 67 project/PCM3Reload 10r SEM 5758733c
73737 68 project/PCM3Reload 10r SEM 575873d0
73737 69 project/PCM3Reload 10r SEM 57587464
73737 70 project/PCM3Reload 10r SEM 575874f8
73737 71 project/PCM3Reload 10r SEM 5758758c
73737 72 project/PCM3Reload 10r SEM 57587620
73737 73 project/PCM3Reload 10r SEM 575876b4
73737 74 project/PCM3Reload 10r SEM 57587748
73737 75 project/PCM3Reload 10r SEM 575877dc
73737 76 project/PCM3Reload 10r SEM 57587870
73737 77 project/PCM3Reload 10r SEM 57587904
73737 78 project/PCM3Reload 10r SEM 57587998
73737 79 project/PCM3Reload 10r SEM 57587a2c
73737 80 project/PCM3Reload 11r REPLY 4106
73737 81 project/PCM3Reload 11r REPLY 282687
73737 82 project/PCM3Reload 11r REPLY 16411
73737 83 project/PCM3Reload 10r REPLY 282687
73737 84 project/PCM3Reload 10r REPLY 73765
73737 85 project/PCM3Reload 10r RECEIVE 20
73737 86 project/PCM3Reload 10r CONDVAR 7a36f4c
73737 87 project/PCM3Reload 10r REPLY 282687
73737 88 project/PCM3Reload 10r SIGWAITINFO
73737 89 project/PCM3Reload 8r CONDVAR 7a03f4c
73737 90 project/PCM3Reload 10r CONDVAR 79f2f4c
73737 91 project/PCM3Reload 10r CONDVAR 79d0f4c
73737 92 project/PCM3Reload 10r RECEIVE 16
73737 93 project/PCM3Reload 10r CONDVAR 79bff4c
73737 94 project/PCM3Reload 10r RECEIVE 14
73737 95 project/PCM3Reload 10r RECEIVE 24
73737 96 project/PCM3Reload 10r CONDVAR 798cf34
73737 97 project/PCM3Reload 10r CONDVAR 797bf34
73737 98 project/PCM3Reload 10r REPLY 229436
73737 99 project/PCM3Reload 10r REPLY 229436
73737 100 project/PCM3Reload 10r CONDVAR 7948f34
73737 101 project/PCM3Reload 10r CONDVAR 7937f34
73737 102 project/PCM3Reload 10r CONDVAR 7926f34
73737 103 project/PCM3Reload 10r CONDVAR 7915f34
73737 104 project/PCM3Reload 10r CONDVAR 7904f34
73737 105 project/PCM3Reload 10r CONDVAR 78f3f34
73737 106 project/PCM3Reload 10r CONDVAR 78e2f34
73737 107 project/PCM3Reload 10r CONDVAR 78d1f34
73737 108 project/PCM3Reload 10r CONDVAR 78c0f34
73737 109 project/PCM3Reload 10r CONDVAR 78aff34
73737 110 project/PCM3Reload 10r CONDVAR 789ef34
73737 111 project/PCM3Reload 10r CONDVAR 788df28
73737 112 project/PCM3Reload 10r CONDVAR 787cf4c
73737 113 project/PCM3Reload 10r CONDVAR 785af4c
73737 114 project/PCM3Reload 10r CONDVAR 786bf4c
73737 115 project/PCM3Reload 10r CONDVAR 7849f4c
73737 116 project/PCM3Reload 10r RECEIVE 27
73737 117 project/PCM3Reload 10r REPLY 229436
73737 118 project/PCM3Reload 10r CONDVAR 7816f4c
73737 119 project/PCM3Reload 10r CONDVAR 7805f4c
73751 1 fs_app/sbin/io-usb 10r SIGWAITINFO
73751 2 fs_app/sbin/io-usb 21r RECEIVE 4
73751 3 fs_app/sbin/io-usb 21r RECEIVE 7
73751 4 fs_app/sbin/io-usb 21r RECEIVE 10
73751 5 fs_app/sbin/io-usb 21r RECEIVE 1
73751 6 fs_app/sbin/io-usb 21r RECEIVE 13
73751 7 fs_app/sbin/io-usb 21r RECEIVE 13
73751 8 fs_app/sbin/io-usb 10r NANOSLEEP
73751 9 fs_app/sbin/io-usb 21r RECEIVE 13
73765 1 n/srv_drivehandler 63r SIGWAITINFO
73765 2 n/srv_drivehandler 63r RECEIVE 1
73765 3 n/srv_drivehandler 10r RECEIVE 4
73765 4 n/srv_drivehandler 10r REPLY 16413
73765 5 n/srv_drivehandler 10r SEM 56d529fc
73765 6 n/srv_drivehandler 10r SEM 56d52a90
73765 7 n/srv_drivehandler 10r SEM 56d52b24
73765 8 n/srv_drivehandler 10r RECEIVE 7
73765 9 n/srv_drivehandler 10r CONDVAR 7f7ff38
73766 1 s_app/usr/sbin/mcd 10r RECEIVE 1
73766 2 s_app/usr/sbin/mcd 10r SIGWAITINFO
73766 3 s_app/usr/sbin/mcd 10r SIGWAITINFO
73766 4 s_app/usr/sbin/mcd 10r SIGWAITINFO
73766 5 s_app/usr/sbin/mcd 10r SIGWAITINFO
73766 6 s_app/usr/sbin/mcd 10r SIGWAITINFO
73766 7 s_app/usr/sbin/mcd 20r SIGWAITINFO
73766 8 s_app/usr/sbin/mcd 10r NANOSLEEP
73766 9 s_app/usr/sbin/mcd 10r SIGWAITINFO
73767 1 /HBproject/NavCore 63r SIGWAITINFO
73767 2 /HBproject/NavCore 10r RECEIVE 1
73767 3 /HBproject/NavCore 10r RECEIVE 4
73767 4 /HBproject/NavCore 10r REPLY 16413
73767 5 /HBproject/NavCore 10r SEM 53ce4af4
73767 6 /HBproject/NavCore 10r SEM 53ce4b88
73767 7 /HBproject/NavCore 10r CONDVAR 86bebb8
73767 8 /HBproject/NavCore 10r NANOSLEEP
73767 9 /HBproject/NavCore 10r CONDVAR 3b1f7010
73767 10 /HBproject/NavCore 10r SEM 53ccf0b0
73767 11 /HBproject/NavCore 11r SEM 53ccfcc8
73767 12 /HBproject/NavCore 10r SEM 53ccfd10
73767 13 /HBproject/NavCore 10r SEM 53ccfd58
73767 14 /HBproject/NavCore 11r REPLY 16408
73767 15 /HBproject/NavCore 12r SEM 53ccfde8
73767 16 /HBproject/NavCore 10r SEM 53ccfe30
73767 17 /HBproject/NavCore 10r SEM 53ccfe78
73767 18 /HBproject/NavCore 10r SEM 53ccfec0
73767 19 /HBproject/NavCore 10r SEM 53ccff08
73767 20 /HBproject/NavCore 10r SEM 53ccff50
73767 21 /HBproject/NavCore 10r SEM 522c10b0
73767 22 /HBproject/NavCore 10r SEM 522c10f8
73767 23 /HBproject/NavCore 10r SEM 522c1188
73767 24 /HBproject/NavCore 10r SEM 522c11d0
73767 25 /HBproject/NavCore 10r SEM 522c1218
73767 26 /HBproject/NavCore 10r SEM 522c1260
73767 27 /HBproject/NavCore 10r SEM 522c12a8
73767 28 /HBproject/NavCore 10r SEM 522c12f0
73767 29 /HBproject/NavCore 10r SEM 522c1338
73767 30 /HBproject/NavCore 10r SEM 522c1380
73767 31 /HBproject/NavCore 10r REPLY 282687
73767 32 /HBproject/NavCore 11r SEM 522c1410
73767 33 /HBproject/NavCore 14r CONDVAR 8801b8c
73768 1 sbin/srv-dvdplayer 10r NANOSLEEP
73768 2 sbin/srv-dvdplayer 10r SEM 52a41810
73768 3 sbin/srv-dvdplayer 10r SEM 52a43f90
73768 4 sbin/srv-dvdplayer 10r RECEIVE 1
73768 5 sbin/srv-dvdplayer 10r CONDVAR 83a33a8
73769 1 s_app/usr/sbin/qdb 10r SIGWAITINFO
73769 2 s_app/usr/sbin/qdb 10r RECEIVE 1
73769 3 s_app/usr/sbin/qdb 10r RECEIVE 1
73769 4 s_app/usr/sbin/qdb 10r RECEIVE 1
73769 5 s_app/usr/sbin/qdb 10r RECEIVE 1
73769 6 s_app/usr/sbin/qdb 10r RECEIVE 1
73769 7 s_app/usr/sbin/qdb 10r RECEIVE 1
73769 8 s_app/usr/sbin/qdb 10r RECEIVE 1
73769 9 s_app/usr/sbin/qdb 10r RECEIVE 1
73769 10 s_app/usr/sbin/qdb 9r RECEIVE 1
73769 11 s_app/usr/sbin/qdb 10r RECEIVE 1
73770 1 bin/vdev-logvolmgr 10r RECEIVE 1
73770 2 bin/vdev-logvolmgr 10r RECEIVE 1
73770 3 bin/vdev-logvolmgr 10r RECEIVE 1
73770 4 bin/vdev-logvolmgr 10r RECEIVE 1
73770 5 bin/vdev-logvolmgr 10r SEM 52bbd08c
122915 1 oot/dev-i2c-hbfpga 10r RECEIVE 4
122915 2 oot/dev-i2c-hbfpga 24r INTR
122924 1 bin/io-media-margi 10r RECEIVE 1
135211 1 r/vdev-medialaunch 10r RECEIVE 1
135211 2 r/vdev-medialaunch 10r CONDVAR 8066d80
135211 3 r/vdev-medialaunch 10r NANOSLEEP
135211 4 r/vdev-medialaunch 10r REPLY 73751
135211 5 r/vdev-medialaunch 10r NANOSLEEP
139310 1 proc/boot/ksh 10r SIGSUSPEND
139315 1 /boot/PCM3PerfLoad 10r NANOSLEEP
143410 1 proc/boot/sleep 10r SIGWAITINFO
147503 1 app/usr/mme-update 10r SIGWAITINFO
147503 2 app/usr/mme-update 10r RECEIVE 1
147503 3 app/usr/mme-update 10r RECEIVE 3
167985 1 _app/sbin/devc-pty 10r RECEIVE 1
172084 1 app/usr/sbin/qconn 10r SIGWAITINFO
172084 2 app/usr/sbin/qconn 10r CONDVAR 805f3fc
172084 3 app/usr/sbin/qconn 10r RECEIVE 1
172084 4 app/usr/sbin/qconn 10r RECEIVE 3
172085 1 roc_scriptlauncher 10r SIGWAITINFO
172090 1 p/usr/sbin/fs-nfs3 10r RECEIVE 1
172090 2 p/usr/sbin/fs-nfs3 10r RECEIVE 1
172090 3 p/usr/sbin/fs-nfs3 10r RECEIVE 1
172090 4 p/usr/sbin/fs-nfs3 10r RECEIVE 1
172090 5 p/usr/sbin/fs-nfs3 10r RECEIVE 1
188471 1 app/usr/sbin/inetd 10r SIGWAITINFO
204813 1 p/usr/sbin/fs-nfs3 10r RECEIVE 1
204813 2 p/usr/sbin/fs-nfs3 10r RECEIVE 1
204813 3 p/usr/sbin/fs-nfs3 10r RECEIVE 1
204813 4 p/usr/sbin/fs-nfs3 10r RECEIVE 1
204813 5 p/usr/sbin/fs-nfs3 10r RECEIVE 1
221240 1 r/sbin/mmelauncher 10r RECEIVE 1
229433 1 sr/sbin/mme-becker 10r RECEIVE 4
229433 2 sr/sbin/mme-becker 6r RECEIVE 1
229433 3 sr/sbin/mme-becker 10r CONDVAR 816f428
229433 4 sr/sbin/mme-becker 10r CONDVAR 816f428
229433 5 sr/sbin/mme-becker 10r CONDVAR 816f34c
229433 6 sr/sbin/mme-becker 10r RECEIVE 5
229433 7 sr/sbin/mme-becker 10r CONDVAR 816f1b0
229433 8 sr/sbin/mme-becker 10r RECEIVE 11
229433 9 sr/sbin/mme-becker 10r CONDVAR 816f4c8
229433 10 sr/sbin/mme-becker 10r CONDVAR 8173668
229433 11 sr/sbin/mme-becker 10r RECEIVE 4
229433 12 sr/sbin/mme-becker 10r RECEIVE 4
229433 13 sr/sbin/mme-becker 10r RECEIVE 4
229433 14 sr/sbin/mme-becker 10r RECEIVE 4
229433 15 sr/sbin/mme-becker 10r RECEIVE 4
229435 1 pp/sbin/devb-umass 10r SIGWAITINFO
229435 2 pp/sbin/devb-umass 21r REPLY 73751
229435 3 pp/sbin/devb-umass 21r RECEIVE 1
229435 4 pp/sbin/devb-umass 10r RECEIVE 7
229435 5 pp/sbin/devb-umass 21r RECEIVE 4
229435 6 pp/sbin/devb-umass 21r RECEIVE 4
229435 7 pp/sbin/devb-umass 10r RECEIVE 4
229435 8 pp/sbin/devb-umass 10r RECEIVE 4
229436 1 Bbin/PSSBSSProcess 11r SEM 5151b2d0
229436 2 Bbin/PSSBSSProcess 24f NANOSLEEP
229436 3 Bbin/PSSBSSProcess 11r SEM 5151b858
229436 4 Bbin/PSSBSSProcess 11r SEM 504d2318
229436 5 Bbin/PSSBSSProcess 11r REPLY 4111
229436 6 Bbin/PSSBSSProcess 11r SEM 5151ba20
229436 7 Bbin/PSSBSSProcess 11r SEM 504d2390
229436 8 Bbin/PSSBSSProcess 11r SEM 504d28e8
229436 9 Bbin/PSSBSSProcess 11r SEM 504d2c30
229436 10 Bbin/PSSBSSProcess 24f SEM 504d30f0
229436 11 Bbin/PSSBSSProcess 11r SEM 504d2ee8
229436 12 Bbin/PSSBSSProcess 11r SEM 504d34b0
229436 13 Bbin/PSSBSSProcess 11r SEM 504d3510
229436 14 Bbin/PSSBSSProcess 11r SEM 504d3708
229436 15 Bbin/PSSBSSProcess 11r NANOSLEEP
229436 16 Bbin/PSSBSSProcess 11r SEM 504d6978
229436 17 Bbin/PSSBSSProcess 11r SEM 504d6ba0
229436 18 Bbin/PSSBSSProcess 11r NANOSLEEP
229436 19 Bbin/PSSBSSProcess 11r SEM 50470d68
229436 20 Bbin/PSSBSSProcess 11r SEM 50470f90
229436 21 Bbin/PSSBSSProcess 11r NANOSLEEP
229436 22 Bbin/PSSBSSProcess 11r SEM 50450210
229436 23 Bbin/PSSBSSProcess 11r SEM 50474318
229436 24 Bbin/PSSBSSProcess 11r SEM 50450228
229436 25 Bbin/PSSBSSProcess 11r SEM 504502a0
229436 26 Bbin/PSSBSSProcess 11r SEM 504502e8
229436 27 Bbin/PSSBSSProcess 11r SEM 504501c8
229436 28 Bbin/PSSBSSProcess 11r SEM 50450060
229436 29 Bbin/PSSBSSProcess 11r SEM 504d3270
229436 30 Bbin/PSSBSSProcess 11r NANOSLEEP
229436 31 Bbin/PSSBSSProcess 11r SEM 504508e8
229436 32 Bbin/PSSBSSProcess 11r SEM 50457738
229436 33 Bbin/PSSBSSProcess 11r SEM 50450678
229436 34 Bbin/PSSBSSProcess 11r NANOSLEEP
229436 35 Bbin/PSSBSSProcess 11r SEM 504215b8
229436 36 Bbin/PSSBSSProcess 11r SEM 50421750
229436 37 Bbin/PSSBSSProcess 11r SEM 504218e8
229436 38 Bbin/PSSBSSProcess 11r SEM 50457e40
229436 39 Bbin/PSSBSSProcess 11r SEM 50457780
229436 40 Bbin/PSSBSSProcess 11r SEM 50421e10
229436 41 Bbin/PSSBSSProcess 11r SEM 50421c00
229436 42 Bbin/PSSBSSProcess 11r SEM 50423288
229436 43 Bbin/PSSBSSProcess 9r SEM 504236a8
229436 44 Bbin/PSSBSSProcess 9r SEM 50427438
229436 45 Bbin/PSSBSSProcess 11r SEM 504271c8
229436 46 Bbin/PSSBSSProcess 9r SEM 50427e10
229436 47 Bbin/PSSBSSProcess 11r SEM 50427990
229436 48 Bbin/PSSBSSProcess 11r SEM 503b07c8
229436 49 Bbin/PSSBSSProcess 11r SEM 503b0948
229436 50 Bbin/PSSBSSProcess 9r SEM 503b0e10
229436 51 Bbin/PSSBSSProcess 9r SEM 503b4048
229436 52 Bbin/PSSBSSProcess 9r SEM 503b47e0
229436 53 Bbin/PSSBSSProcess 9r SEM 503b4798
229436 54 Bbin/PSSBSSProcess 9r SEM 503b4e10
229436 55 Bbin/PSSBSSProcess 9r SEM 503b4dc8
229436 56 Bbin/PSSBSSProcess 9r SEM 503b7498
229436 57 Bbin/PSSBSSProcess 9r SEM 503b7450
229436 58 Bbin/PSSBSSProcess 11r SEM 503b78e8
229436 59 Bbin/PSSBSSProcess 11r SEM 503124b0
229436 60 Bbin/PSSBSSProcess 11r SEM 50423078
229436 61 Bbin/PSSBSSProcess 11r SEM 50312ca8
229436 62 Bbin/PSSBSSProcess 11r SEM 50312a38
229436 63 Bbin/PSSBSSProcess 11r SEM 50314648
229436 64 Bbin/PSSBSSProcess 10r RECEIVE 1
229436 65 Bbin/PSSBSSProcess 11r NANOSLEEP
229436 66 Bbin/PSSBSSProcess 11r SEM 503167f8
229436 67 Bbin/PSSBSSProcess 11r NANOSLEEP
229436 68 Bbin/PSSBSSProcess 11r SEM 50316be8
229436 69 Bbin/PSSBSSProcess 11r SEM 50316e58
229436 70 Bbin/PSSBSSProcess 11r SEM 50316498
229436 71 Bbin/PSSBSSProcess 11r SEM 502a86c0
229436 72 Bbin/PSSBSSProcess 11r SEM 50314930
229436 73 Bbin/PSSBSSProcess 11r SEM 502a8cd8
229436 74 Bbin/PSSBSSProcess 11r SEM 502a8de0
229436 75 Bbin/PSSBSSProcess 10r RECEIVE 3
229436 76 Bbin/PSSBSSProcess 11r SEM 502a99a8
229436 77 Bbin/PSSBSSProcess 11r SEM 502a8b40
229436 78 Bbin/PSSBSSProcess 11r SEM 502a9d38
229436 79 Bbin/PSSBSSProcess 11r SEM 502a9f78
229436 80 Bbin/PSSBSSProcess 10r RECEIVE 8
229436 81 Bbin/PSSBSSProcess 11r SEM 502a9b70
229436 82 Bbin/PSSBSSProcess 11r RECEIVE 10
229436 83 Bbin/PSSBSSProcess 11r RECEIVE 12
229436 84 Bbin/PSSBSSProcess 11r RECEIVE 14
229436 85 Bbin/PSSBSSProcess 11r RECEIVE 16
229436 86 Bbin/PSSBSSProcess 11r RECEIVE 18
229436 87 Bbin/PSSBSSProcess 11r RECEIVE 20
229436 88 Bbin/PSSBSSProcess 11r RECEIVE 22
229436 89 Bbin/PSSBSSProcess 11r RECEIVE 24
229436 90 Bbin/PSSBSSProcess 11r RECEIVE 26
229436 91 Bbin/PSSBSSProcess 11r RECEIVE 28
229436 92 Bbin/PSSBSSProcess 11r RECEIVE 30
229436 93 Bbin/PSSBSSProcess 11r SEM 502af9f0
229436 94 Bbin/PSSBSSProcess 11r RECEIVE 32
229436 95 Bbin/PSSBSSProcess 11r RECEIVE 34
229436 96 Bbin/PSSBSSProcess 11r RECEIVE 36
229436 97 Bbin/PSSBSSProcess 11r RECEIVE 38
229436 98 Bbin/PSSBSSProcess 10r SEM 502acb10
229436 99 Bbin/PSSBSSProcess 11r RECEIVE 40
229436 100 Bbin/PSSBSSProcess 11r RECEIVE 49
229436 101 Bbin/PSSBSSProcess 11r RECEIVE 51
229436 102 Bbin/PSSBSSProcess 11r RECEIVE 53
229436 103 Bbin/PSSBSSProcess 11r RECEIVE 55
229436 104 Bbin/PSSBSSProcess 11r RECEIVE 57
229436 105 Bbin/PSSBSSProcess 11r RECEIVE 59
229436 106 Bbin/PSSBSSProcess 11r RECEIVE 61
229436 107 Bbin/PSSBSSProcess 11r RECEIVE 63
229436 108 Bbin/PSSBSSProcess 11r RECEIVE 75
229436 109 Bbin/PSSBSSProcess 11r RECEIVE 83
229436 110 Bbin/PSSBSSProcess 10r SEM 503e51b0
229436 111 Bbin/PSSBSSProcess 10r SEM 503e5600
229436 112 Bbin/PSSBSSProcess 11r SEM 503e59a8
229436 113 Bbin/PSSBSSProcess 11r SEM 503e5a20
229436 114 Bbin/PSSBSSProcess 11r RECEIVE 82
229436 115 Bbin/PSSBSSProcess 11r RECEIVE 93
229436 116 Bbin/PSSBSSProcess 11r SEM 503e76a8
229436 117 Bbin/PSSBSSProcess 11r REPLY 4116
229436 118 Bbin/PSSBSSProcess 11r SEM 509294e0
229436 119 Bbin/PSSBSSProcess 11r RECEIVE 101
229437 1 r/sbin/io-fs-media 10r RECEIVE 1
229437 2 r/sbin/io-fs-media 25f NANOSLEEP
229437 3 r/sbin/io-fs-media 12r REPLY 229436
282649 1 proc/boot/dumper 10r RECEIVE 1
282687 1 p/HBbin/SSSProcess 11r SEM 50e76060
282687 2 p/HBbin/SSSProcess 24f NANOSLEEP
282687 3 p/HBbin/SSSProcess 11r SEM 50e764f8
282687 4 p/HBbin/SSSProcess 11r SEM 50e768d0
282687 5 p/HBbin/SSSProcess 11r REPLY 4111
282687 6 p/HBbin/SSSProcess 11r SEM 50e766c0
282687 7 p/HBbin/SSSProcess 11r SEM 50e76960
282687 8 p/HBbin/SSSProcess 11r SEM 50e76eb8
282687 9 p/HBbin/SSSProcess 11r SEM 50e6b258
282687 10 p/HBbin/SSSProcess 11r SEM 50e6b4c8
282687 11 p/HBbin/SSSProcess 24f SEM 50e6ba98
282687 12 p/HBbin/SSSProcess 11r SEM 50e6b708
282687 13 p/HBbin/SSSProcess 11r SEM 50e6bf18
282687 14 p/HBbin/SSSProcess 11r SEM 50e6bd08
282687 15 p/HBbin/SSSProcess 11r SEM 50e6bac8
282687 16 p/HBbin/SSSProcess 11r SEM 50e6e798
282687 17 p/HBbin/SSSProcess 11r SEM 50e6e8a0
282687 18 p/HBbin/SSSProcess 11r SEM 50e6ef18
282687 19 p/HBbin/SSSProcess 11r SEM 50e6e2a0
282687 20 p/HBbin/SSSProcess 24f SEM 50ed2798
282687 21 p/HBbin/SSSProcess 24f SEM 50ed2af8
282687 22 p/HBbin/SSSProcess 24s SEM 50ed2db0
282687 23 p/HBbin/SSSProcess 24f SEM 50ed2ed0
282687 24 p/HBbin/SSSProcess 24f SEM 50ed4060
282687 25 p/HBbin/SSSProcess 24f SEM 50ed4180
282687 26 p/HBbin/SSSProcess 24s SEM 50ed4318
282687 27 p/HBbin/SSSProcess 11r SEM 50ed2120
282687 28 p/HBbin/SSSProcess 11r SEM 50ed4a98
282687 29 p/HBbin/SSSProcess 11r SEM 50ed4b10
282687 30 p/HBbin/SSSProcess 11r SEM 50ed4798
282687 31 p/HBbin/SSSProcess 24f SEM 50ed4f18
282687 32 p/HBbin/SSSProcess 11r SEM 50ed4d50
282687 33 p/HBbin/SSSProcess 24f SEM 50ed6918
282687 34 p/HBbin/SSSProcess 24f SEM 50ed6b70
282687 35 p/HBbin/SSSProcess 11r SEM 50ed67c8
282687 36 p/HBbin/SSSProcess 11r SEM 50ed6fd8
282687 37 p/HBbin/SSSProcess 11r SEM 5130a1e0
282687 38 p/HBbin/SSSProcess 11r SEM 50ed6c90
282687 39 p/HBbin/SSSProcess 11r SEM 5130a570
282687 40 p/HBbin/SSSProcess 11r SEM 5130a8d0
282687 41 p/HBbin/SSSProcess 11r SEM 5130a948
282687 42 p/HBbin/SSSProcess 10r RECEIVE 1
282688 1 proc/boot/ksh 10r SIGSUSPEND
491565 1 proc/boot/pidin 10r REPLY 1

=== Network ===
lo0: flags=8009<UP,LOOPBACK,MULTICAST> mtu 33212
capabilities=7<IP4CSUM,TCP4CSUM,UDP4CSUM>
enabled=0<>
inet 127.0.0.1 netmask 0xff000000

=== USBROOT contents ===
total 135
drwxrwxrwx 3 root 0 4096 Apr 18 12:05 .
drwxrwxrwx 3 root 0 4096 Apr 18 12:05 ..
n--------- 1 root 0 0 Mar 30 09:32 =USB
-rw-rw-rw- 1 root 0 28 Apr 18 08:15 PagSWAct_backup.002
drwxrwxrwx 2 root 0 4096 Mar 30 09:32 System Volume Information
-rw-rw-rw- 1 root 0 154 Apr 18 12:05 copie_scr.sh
-rw-rw-rw- 1 root 0 52781 Apr 18 12:05 pcm_debug.log
-rw-rw-rw- 1 root 0 2067 Apr 18 12:05 run.sh

=== Done ===



Nice, I see you were able to get the HD contents. So in practical terms, what would this allow us to do? Hack 3.1 to add ability like Carplay? Install 4.0 PCM OS???



The Audi MMi folks figured out how to run scripts from an SD card automatically todo tasks like nav unlocks and such. I discovered the same works in PCM land with the USB. Its Root access. Carplay is what I am after but found more.

This is the real important bit as this is the activation list for your car.
/HBpersistence/PagSWAct.002
Some magic later.. I can make activation keys
I was able to enable the Engineering menu with a USB stick.. then turned off all features as I didn't realize how the PagSWAct.002 worked... lol reactivated them all. Now I back it up to the USB stick before overwriting with a new one. NO PIWIS needed so far.

I have alot figured out but will give more details soon. I didnt know there was 79 boot screens....





Very cool!



Will this work on PCM 4.0? And what if I already installed MiB?



Dude! This is so awesome!!! I can't thank you enough for doing this.

Now if only someone was able to get a code generator for other items, that would be the icing on the cake. Examples like LED headlight modules, heated steering wheel activation, replacement modules, etc.



Fantastic work reverse engineering all this from firmware! I'm having a hard time figuring out how I would use this though but will be tracking this thread.



Same Question as Sterz85, did the MIB hack to enable Android Auto for PCM 4.0.
Thanks



That's very nice. Would be super cool if we could add/change some functionality. Would be nice to add carplay without all the add-on crap.



OP, you sir are a genius! If you're ever in San Antonio, Tx, lunch is on me!
btw, I'm a developer, and I still think your work is amazing!



My 981 Cayman came with a CDR31 head unit. Most of the decent Apple CarPlay devices require a PCM 3.1. So I sourced a PCM 3.1, but the features, such as Bluetooth, are VIN specific. So for the PCM to work in my car, I had to buy the activation codes, most folks charge $80 per feature or $200+ for the set. So with this cool code generator, just enter your VIN and it will generate the codes.

Now if the OP (or someone else) can figure out the algorithm for the ECU activation codes (like heated steering wheel and modules such as LED headlights), that would be the icing on the cake.

On my Cayenne, I added the heated steering wheel, so I had to buy an activation code for it. I would be happy to share my VIN and the activation code for heated steering wheel and cruise control if it would help to solve the algorithm.



Thanks! I have yet to use touch the obd2 port on the Cayenne. I am working off my A6 adding tools to the engineering menu. Doing most of my dev there. In fact, the PCM engineering enablement worked on my A6 as well. Something that previously required a laptop and cable. Accidental find.

As per the hardware activations.... I am happy to look into it. I only had the PCM firmware to look at. If folks have access to more firmware related the rest of a chassis.... I would be inclined as I assume it's real close if not the same as the PCM algorithm.



hi question, is there a way we can get these icons for the PCM 3.1 - 4.0?

https://rennlist.com/forums/991/1461...t#post20189692
