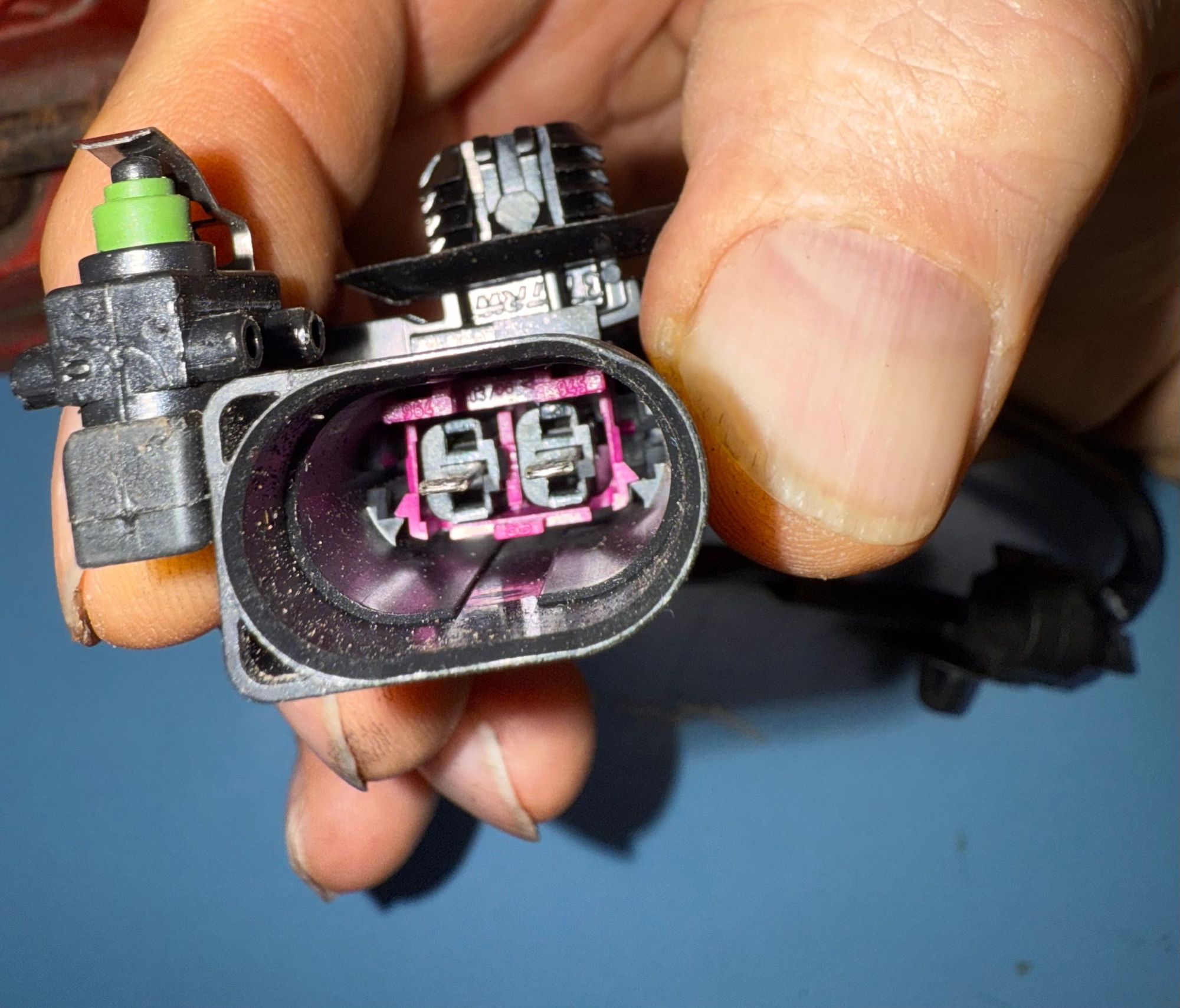

Outside handle switch. Normally open circuit.
Lift handle equals closed circuit. Window drops some.
Door opens, latch rotates cam clockwise=closed circuit.
Door handle released=normally open circuit.
Cam in latch maintains at full CW position with door open.
Cam and switch maintains a closed circuit.
