Default how do you tell the right from left

timing chain tensioners and oil feed tubes. I haven't seen S4 stock chain tensioners or oil feed tubes since I removed them and started with the VarioCam stuff back in 97. So I've got new in the bag tensioners, but the part numbers stickers are no where to be found. Before someson
928sg is offline
Old 12-31-2018, 10:43 PM
  #2
Rob Edwards
Archive Gatekeeper
Rennlist Member

Rob Edwards's Avatar

Join Date: Sep 2002
Location: Irvine, CA
Posts: 13,596
Default

Perhaps these will help-

1-4:

5-8:


Rob Edwards is offline
Old 12-31-2018, 10:52 PM
  #3
Tom. M
Deleted
Rennlist Member

Tom. M's Avatar

Join Date: May 2001
Posts: 4,950
Default

Be careful when connecting the oil feed lines. They appear to fit both ways, but they don't. If it feels just a little bit off, flip it and try again.... (don't ask how I know LOL)..
Tom. M is offline
Old 01-01-2019, 01:23 AM
  #4
Ed Scherer
Addict
Rennlist Member

Ed Scherer's Avatar

Join Date: Jul 2001
Location: Shawnee, KS, USA
Posts: 7,058
Default

Look at the photos in an old post of mine. Shift+Click any photo for way higher resolution version.

Note that the right side tensioner (with the countersinks for the mounting screws facing up, as it's mounted) has piston side up, while the left side tensioner (with the countersinks for the mounting screws facing up, as it's mounted) has piston side down.

Here are the same photos lifted from that post:

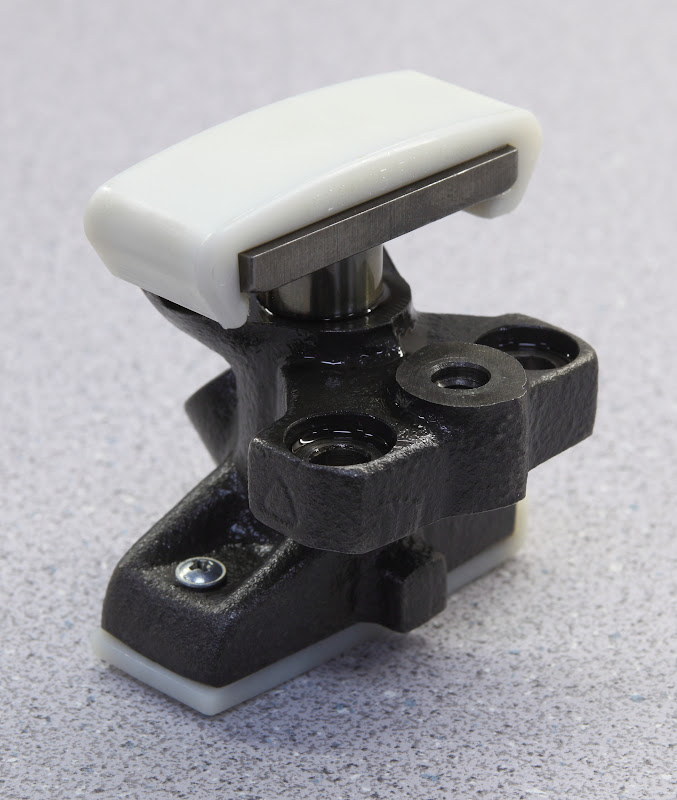

Right-side tensioner with new pads:



Left-side tensioner with new pads:



The asymmetry of the pipes that Tom mentioned in the previous post is captured by this photo (at least for the right side; can't remember if the left side was the same and don't have any photos, unfortunately).


Last edited by Ed Scherer; 01-01-2019 at 01:42 AM.
Ed Scherer is offline
Old 01-01-2019, 11:22 AM
  #5
928sg
Resident 928 Modiholic
Rennlist Member
Thread Starter

928sg's Avatar

Join Date: Mar 2013
Posts: 1,833
Default

thanks guys ~!
928sg is offline
Old 01-01-2019, 02:42 PM
  #6
Lizard928
Super User

Lizard928's Avatar

Join Date: Apr 2003
Location: Abbotsford B.C.
Posts: 9,505
Default

The easier way to remember which is which is to look at the rotation of the engine.

The piston is always on the slack side side of the timing chain.
So if you look at the rotation you can easily see which is which.
If you reverse them you already know what happens.
Lizard928 is offline
